AXK Series
SUMA
| Size: | |
|---|---|
| Torque: | |
| Shaft Limiting Speed : | |
| Outer Ring Limiting Speed : | |
| Outer Race Material: | |
| Needle Material: | |

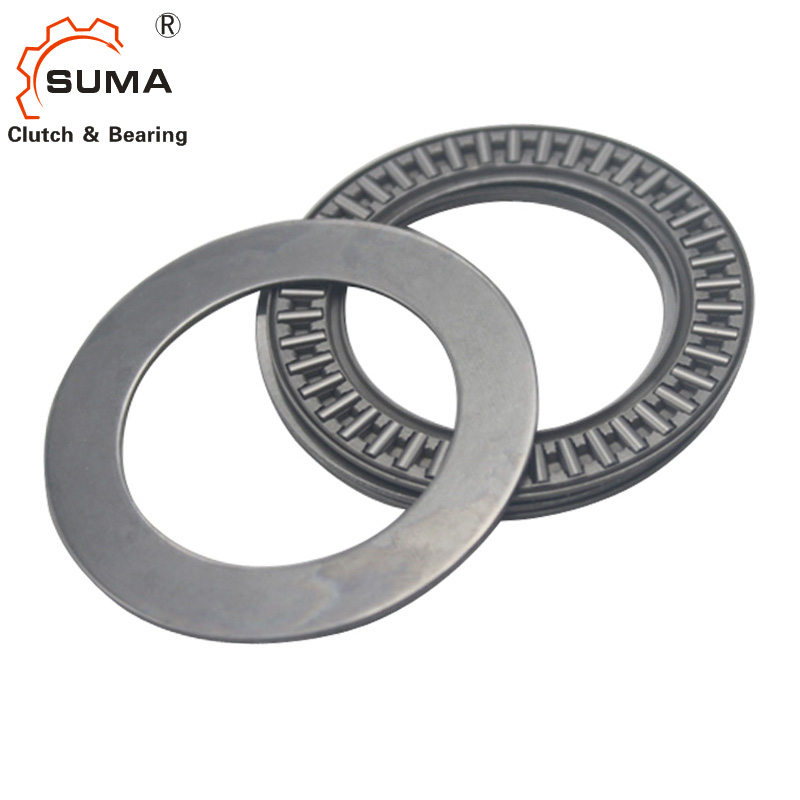

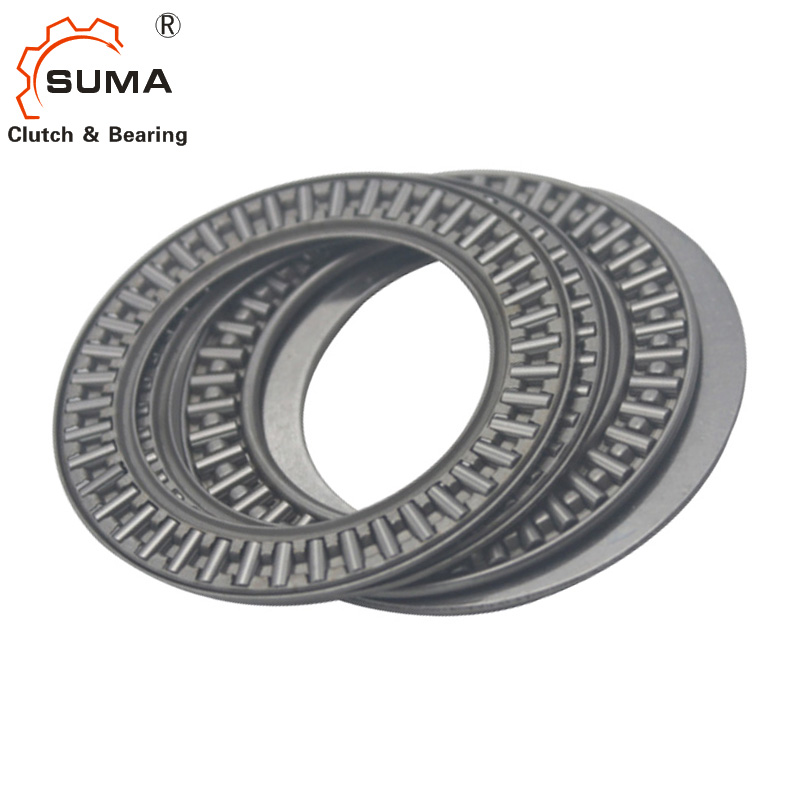

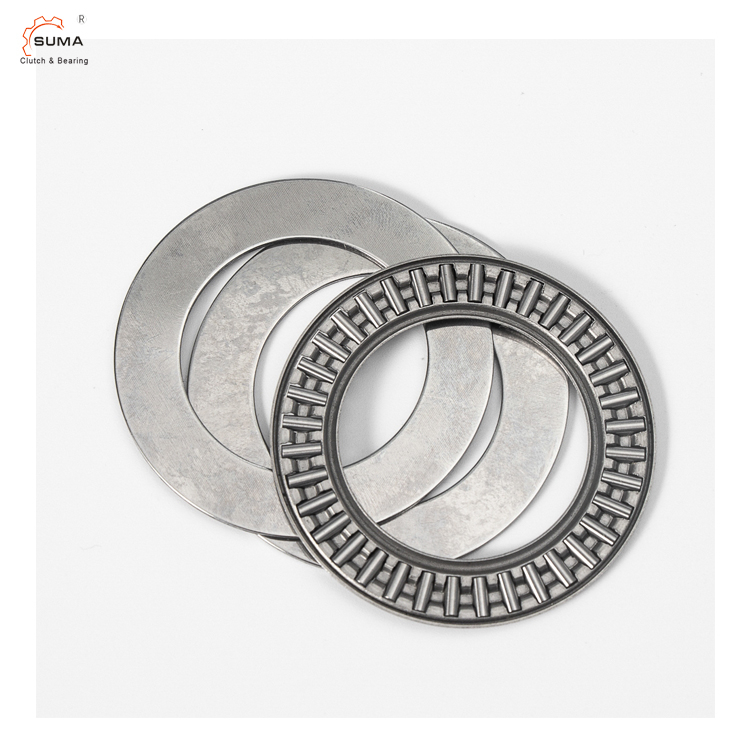

AXK85110+2AS thrust needle roller bearing is designed for high axial load applications where minimal installation
space and high stiffness are required. Supplied with two precision thrust washers (2AS), this bearing assembly
provides reliable axial load support, smooth operation, and long service life for industrial machinery.

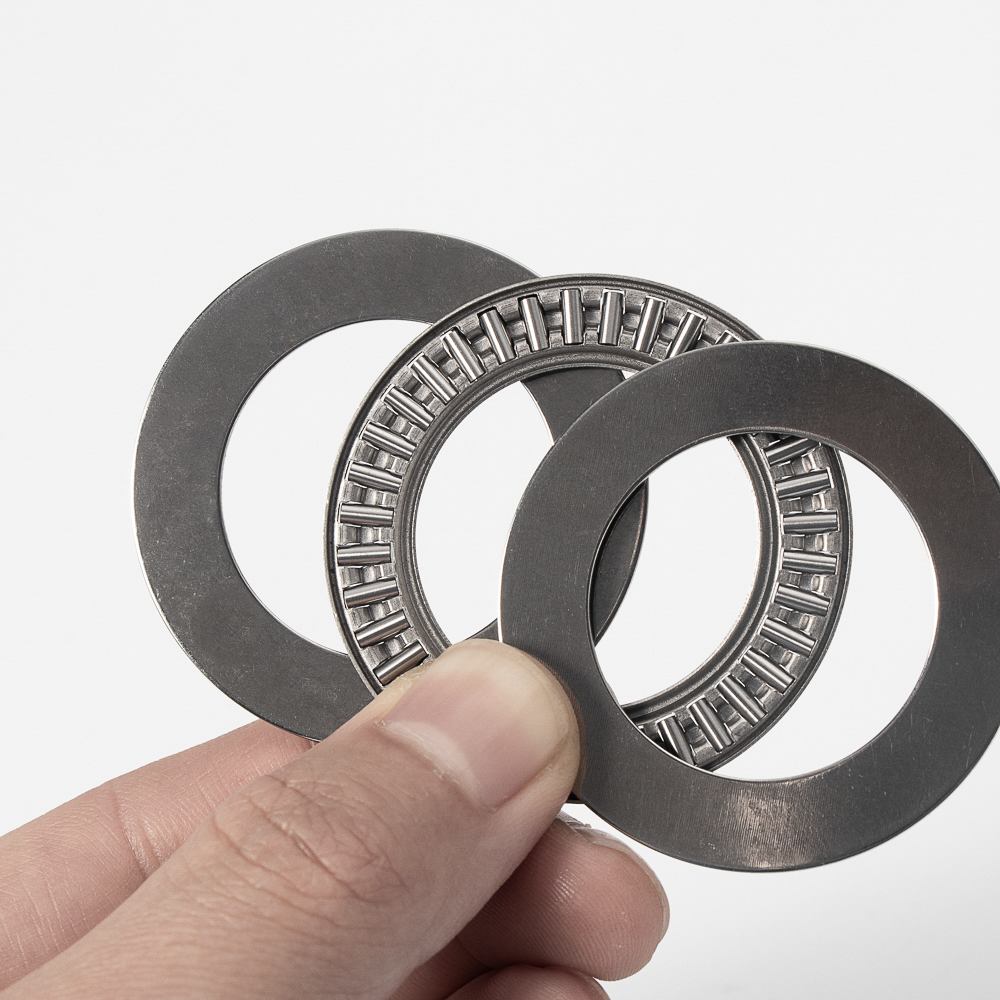

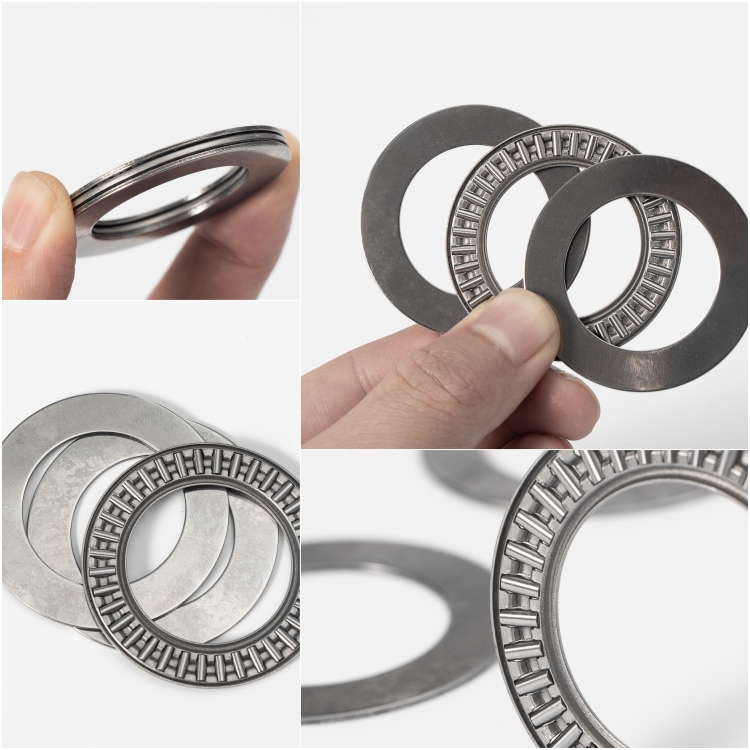

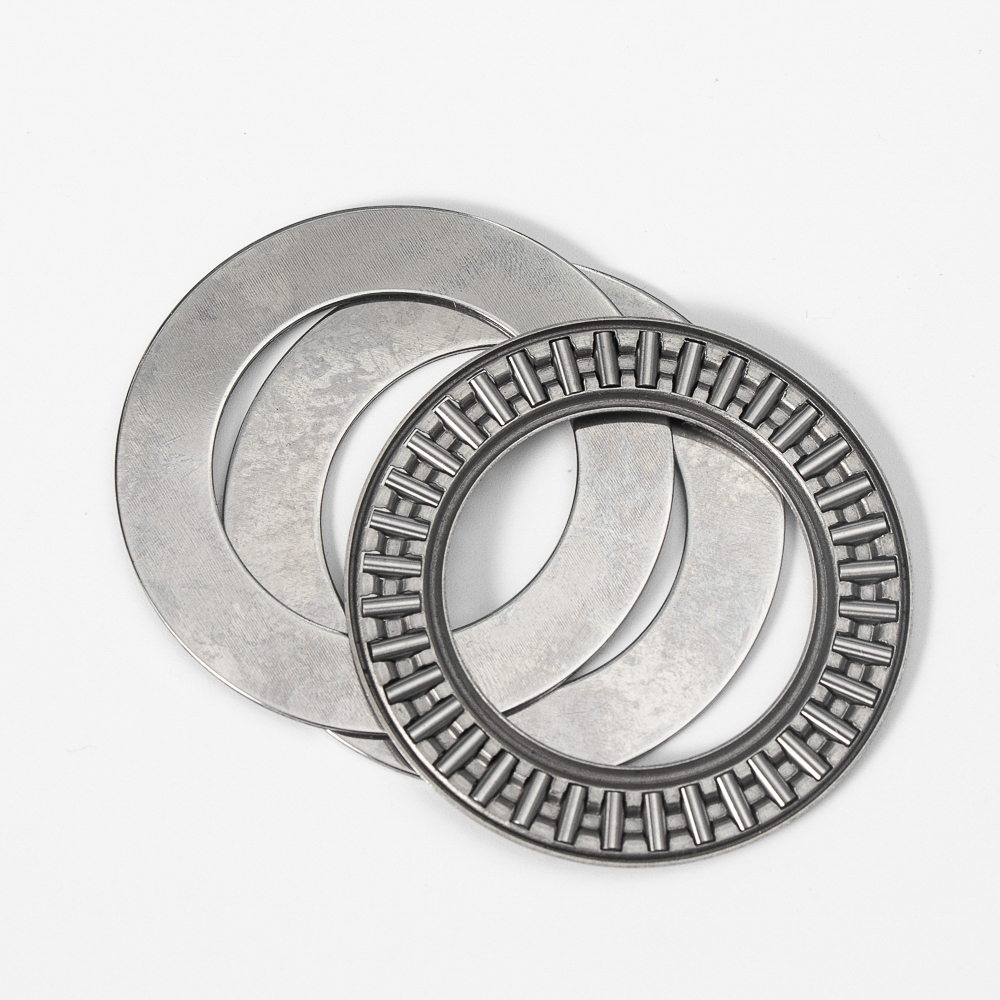

The AXK85110+2AS thrust needle bearing consists of a needle roller and cage assembly combined with two axial
thrust washers. This design allows the bearing to support heavy axial loads while maintaining a compact axial
height. Precision-ground needle rollers are evenly distributed and accurately guided by a form-stable cage,
ensuring stable rotation and uniform load distribution under demanding operating conditions.
Manufactured from high-quality chrome steel or stainless steel, AXK series thrust needle bearings offer excellent wear
resistance, fatigue strength, and dimensional stability. When adjacent machine surfaces can serve as raceways, the
bearing requires no more space than a conventional thrust washer, making it ideal for compact mechanical designs.
High axial load capacity with compact structure

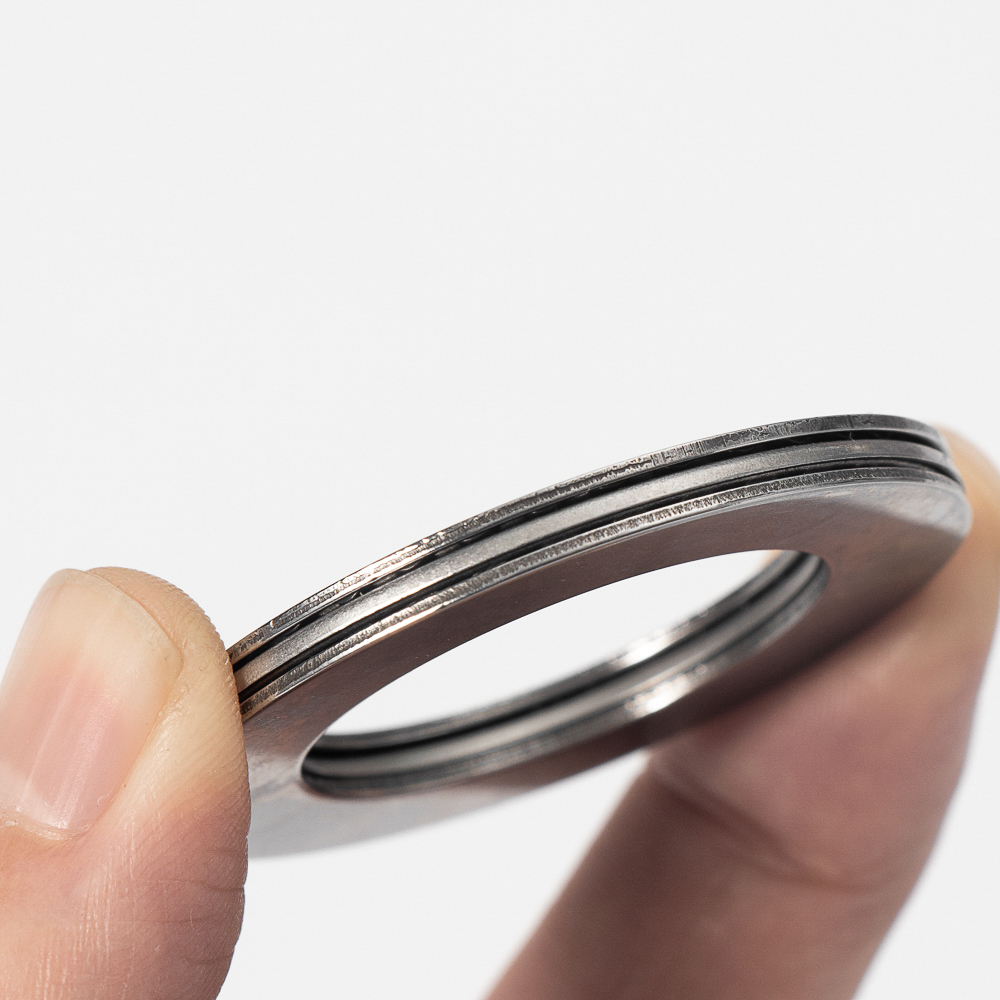

Supplied with 2AS thrust washers for easy installation
Precision needle rollers with tight diameter tolerances
High stiffness and excellent shock load resistance
Low friction, low vibration, and stable running performance
Available in chrome steel or stainless steel material
Suitable for grease or oil lubrication
Long service life under continuous industrial operation

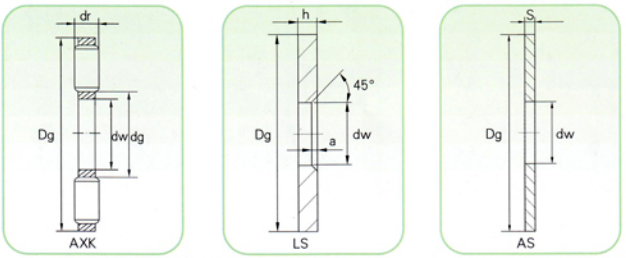

Shaft Dia. (mm) | Axial Needle Roller and Cage Assemblies |
Thrust bearing washer |
Dimension (mm) |
Track size | Basic Load Rating (KN) |
Limiting Speed (r/min) | |||||||||||||||
Code | Mass (g) | Bearing washer | Mass (g) | Shaft Ring | Seat Ring | Axial Bearing | Mass (g) |
Dcl d |
D1 |
Dc D |
1 |
Dw |
B1 |
B |
a r min |
Eb |
Ea |
C |
CO | ||
4 | AXK0414TN | 0.7 | AS0414 | 1 |
— |
— |
— |
— | 4 |
— | 14 |
— | 2 | 1 |
— |
— | 5 | 13 | 4.4 | 8 | 21000 |
5 | AXK0515TN | 0.8 | AS0515 | 1 |
— |
— |
— |
— | 5 |
— | 15 |
— | 2 | 1 |
— |
— | 6 | 14 | 4.75 | 9.2 | 21000 |
6 | AXK0619TN | 1 | AS0619 | 2 | LS0619 |
— |
— | 4 | 6 |
— | 19 |
— | 2 | 1 | 2.75 | 0.3 | 7 | 18 | 6.8 | 15.5 | 19000 |
8 | AXK0821TN | 2 | AS0821 | 2 | LS0821 |
— |
— | 4 | 8 |
— | 21 |
— | 2 | 1 | 2.75 | 0.3 | 9 | 20 | 7.8 | 19.4 | 18000 |
10 | AXK1024 | 3 | AS1024 | 3 | LS1024 |
— |
— | 7 | 10 |
— | 24 |
— | 2 | 1 | 2.75 | 0.3 | 12 | 23 | 9.2 | 25.5 | 17000 |
12 | AXK1226 | 3 | AS1226 | 3 | LS1226 |
— |
— | 8 | 12 |
— | 26 |
— | 2 | 1 | 2.75 | 0.3 | 14 | 25 | 9.9 | 29 | 15000 |
15 | AXK1528 | 4 | AS1528 | 3 | LS1528 | GS81102 | WS81102 | 9 | 15 | 16 | 28 | 28 | 2 | 1 | 2.75 | 0.3 | 17 | 27 | 11.3 | 36 | 13000 |
17 | AXK1730 | 4 | AS1730 | 4 | LS1730 | GS81103 | WS81103 | 9 | 17 | 18 | 30 | 30 | 2 | 1 | 2.75 | 0.3 | 19 | 29 | 11.9 | 39.5 | 12000 |
20 | AXK2035 | 5 | AS2035 | 5 | LS2035 | GS81104 | WS81104 | 13 | 20 | 21 | 35 | 35 | 2 | 1 | 2.75 | 0.3 | 22 | 34 | 13.1 | 46.5 | 10000 |
25 | AXK2542 | 7 | AS2542 | 7 | LS2542 | GS81105 | WS81105 | 19 | 25 | 26 | 42 | 42 | 2 | 1 | 3 | 0.6 | 29 | 41 | 14.7 | 58 | 8500 |
30 | AXK3047 | 8 | AS3047 | 8 | LS3047 | GS81106 | WS81106 | 22 | 30 | 32 | 47 | 47 | 2 | 1 | 3 | 0.6 | 34 | 46 | 16.3 | 70 | 7500 |
35 | AXK3552 | 10 | AS3552 | 9 | LS3552 | GS81107 | WS81107 | 29 | 35 | 37 | 52 | 52 | 2 | 1 | 3.5 | 0.6 | 39 | 51 | 17.8 | 81 | 6500 |
40 | AXK4060 | 16 | AS4060 | 12 | LS4060 | GS81108 | WS81108 | 40 | 40 | 42 | 60 | 60 | 3 | 1 | 3.5 | 0.6 | 45 | 58 | 28 | 114 | 6000 |
45 | AXK4565 | 18 | AS4565 | 13 | LS4565 | GS81109 | WS81109 | 50 | 45 | 47 | 65 | 65 | 3 | 1 | 4 | 0.6 | 50 | 63 | 30 | 128 | 5000 |
50 | AXK5070 | 20 | AS5070 | 14 | LS5070 | GS81110 | WS81110 | 55 | 50 | 52 | 70 | 70 | 3 | 1 | 4 | 0.6 | 55 | 68 | 32 | 143 | 4800 |
55 | AXK5578 | 28 | AS5578 | 18 | LS5578 | GS81111 | WS81111 | 88 | 55 | 57 | 78 | 78 | 3 | 1 | 5 | 0.6 | 60 | 76 | 38 | 186 | 4300 |
| Feature | AXK Series | NTA Series | AXW Series |
|---|---|---|---|
| Thrust Washers | Included (2AS) | Not included | Integrated |
| Axial Height | Low | Ultra-thin | Medium |
| Installation | Easy | Requires precision raceways | Easy |
| Load Capacity | High | High | High |
| Stiffness | High | Very High | Very High |
| Space Requirement | Low | Minimum | Moderate |
| Application Flexibility | High | Medium | High |
| Typical Use | General industry | Compact precision systems | Heavy-duty systems |
Needle Rollers: High-carbon chromium bearing steel (GCr15 / 100Cr6)
Cage: Hardened steel or reinforced nylon
Heat Treatment: Through-hardened for wear resistance
Surface Finish: Precision ground to minimize friction
Each bearing assembly is manufactured under strict quality control to ensure dimensional accuracy and consistent performance.
AXK85110+2AS thrust needle roller bearings are widely used in:
Industrial gearboxes and transmissions
Pumps and compressors
Machine tools and automation equipment
Construction and agricultural machinery
Heavy-duty mechanical assemblies
Compact axial load support systems
With over 20 years of manufacturing experience, SUMA specializes in producing high-quality needle bearings, cam
clutches, and one-way bearings for global industrial customers. All products are manufactured under strict quality
control standards to ensure consistent performance, reliability, and on-time delivery.
Factory-direct supply
Stable quality & competitive pricing
Fast delivery for standard sizes
OEM & customized solutions available
Shaft and housing bore must be hardened and ground
Proper lubrication is required during operation
Suitable for oil or grease lubrication
Follow recommended tolerances to ensure optimal bearing life
Small items: 10 pcs per roll pack + carton
Medium items: Roll pack + carton + wooden box
Bulk quantities: Wooden box or pallet
OEM labeling and customized packaging available
In-stock models: Immediate shipment
Standard production: 10–15 days
Large or customized orders: 20–25 days
✔ Professional needle roller bearing manufacturer
✔ Stable quality and long service life
✔ Competitive wholesale pricing
✔ OEM & ODM service supported
FAQ
1. Are you Trading Company or Manufacturer ?
SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years .
2. Can i have Samples to check quality first ?
It is okay to get needle roller bearing sample for quality check, we provide 5-10 pieces sample free of charge.
3. How can i choose the correct needle roller bearing i need ?
Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.
If you not so sure about it, pls share with us, our engineer will give you professional guidance .
4. What Material of the bearings you are supplied ?
Standard Material : Outer Race : ST14, Needle Roller: GCr15 , Cage: PA66
Stainless Steel Material available too .
5. How soon you can make the shipment ?
Usually all are in stock, can ship out within 2-3 days .
If big quantity, can ship out in 10 days .
Customized sizes may need 15-20 days , Depends on specific order.
