How Does a One Way Bearing Work ?

                                         How Does a One Way Bearing Work ?

Have you ever wondered how some mechanical systems allow rotation in only one direction? This intriguing phenomenon is made possible through the ingenious design of a

 component known as a oneway bearing. In this article, we'll dive deep into the mechanics of a one-way bearing, exploring its structure, functionality, and practical applications. So,

 let's embark on a journey to uncover the secrets behind this fascinating mechanism.

Introduction of One Way Bearing

One Way Bearing Freewheel Clutch can only rotate in one direction,  which means they are engaged and disengaged automatically .

In General, a oneway bearing consists of a set of asymmetrical elements known as sprags, rollers, or cams, arranged within a housing or raceway. These elements are typically

 shaped to engage and disengage with the housing in a manner that dictates the direction of rotation they allow. The primary purpose of a one way bearing is to transmit

 torquefrom an input side to an output side in one direction while freewheeling or allowing limited rotation in the opposite direction.

The behavior of a one way bearing can be understood by considering its two operational modes: engagement and disengagement.

Structure of One Way Bearing

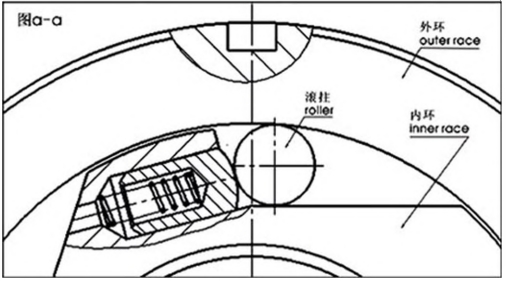

Roller Type One Way Bearing

These freewheels are supported by rollers between the outer ring and the inner ring, while inner

 ring is fitted with a spring and a pin, which generates  a constant thrust force that squeezes the

 rollers outwards to form outer ring .  The continuous contact between the two rings allowing

 for immediate response and transmission of torque forces .

Read More

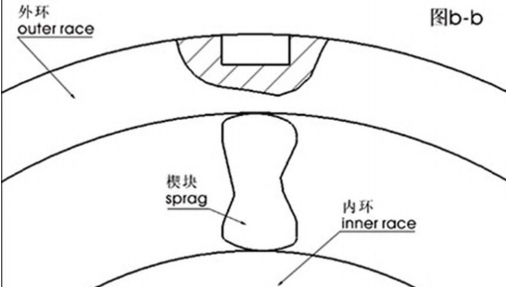

Sprag Type One Way Bearing

In this type of freewheel,the two races are cylindrical.The sprags are placed in a cage to support

 the inner and outer ring, and the relative movement of the sprags against the inner and outer

 ring achieves the function of transmitting torque or freewheeling . It featured with high

 transmission torque and long lservice life .

Read More

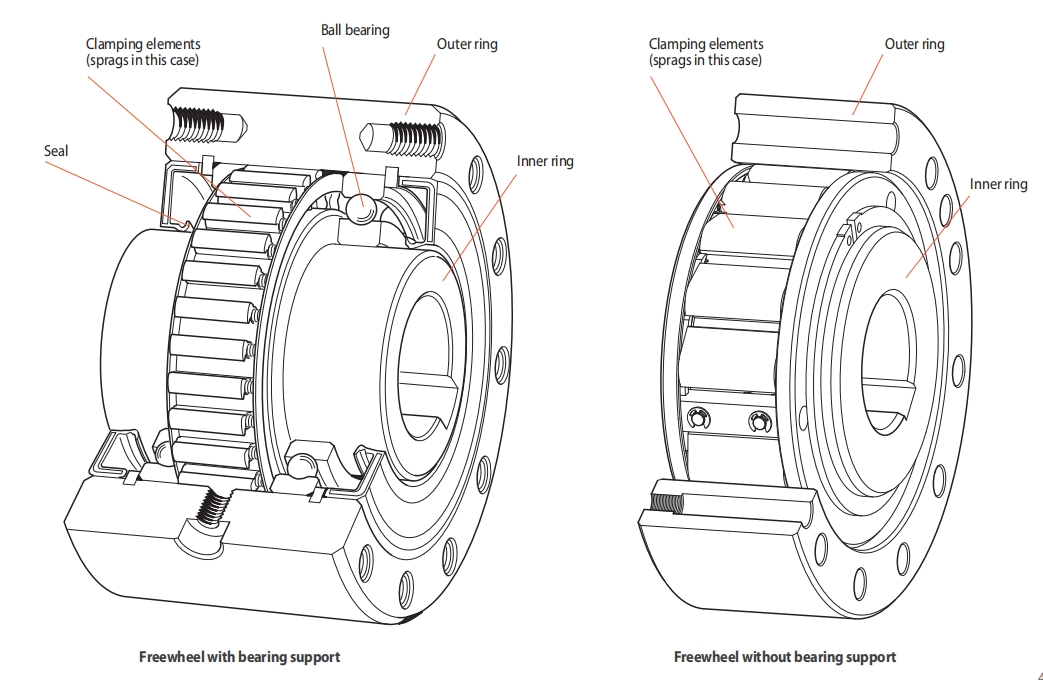

Besides, the one way bearings can also be designed as :

Freewheel with bearings supported

Freewheel without bearings supported

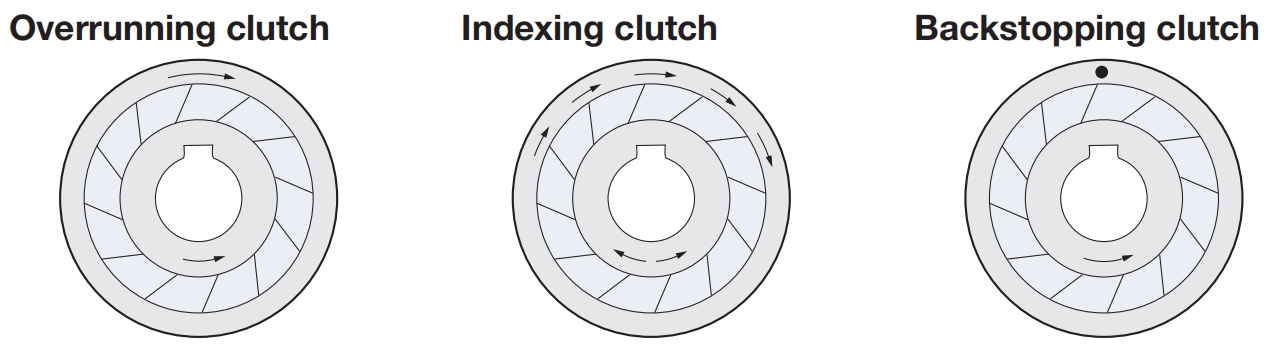

Function of One Way Bearing

Based on different working enviroment, One way bearing sprag clutch can be worked as :

• Backstop Clutch

• Overrunning Clutch

• Indexing Clutch

The overrunning clutch serves to connect machines             In such applications, reciprocating motion imparted                Freewheels serve as backstops when the intention is

or machine components, initiating their contact,                  to the driving race is converted into intermittent move            to prevent reverse rotation from the intended operating

and promptly disengaging as soon as the driven                  in a single direction at the driven race. For instance,                direction. In numerous machines and setups, whether for

component surpasses the speed of the driving                     if a pinion is linked to the driving race, a rack engaging           technical safety or functional purposes, it's imperative to

component. This functionality is particularly useful              with the pinion can provide reciprocating motion to the           guarantee operation in a single specified direction of

in multiple-machine drives or to disassociate the                 driving race. Subsequently, the clutch will advance or                rotation. Legal regulations often mandate the inclusion

inertia of masses between a driven machine and                 "index" the work (driven race) with each forward stroke             of a mechanical safety device, such as conveyor systems,

the driving machine after the latter has been                       of the rack but will not retreat or reverse during the                   to ensure compliance and operational safety.

deactivated.                                                                            rack's return stroke.

Applications of One Way Bearings

One-way bearings find applications in various industries and machinery where unidirectional motion control is essential.

Some common applications include:

Bicycles: One-way bearings are often used in bicycle freewheels, allowing the rider to coast without pedaling when the bicycle is in motion forward, but engaging to drive

the wheel when pedaling in the forward direction. it can worked as backstop clutch and overrunning clutch

Engine Motors: They are utilized in electric motors to prevent reverse rotation, ensuring that the motor only operates in the desired direction.

Automotive: One-way bearings can be found in automotive starter motors, where they allow the starter motor to disengage from the engine's flywheel once the engine starts,

 preventing damage to the starter motor.

Printing Machinery: They are used in printing machinery to ensure that paper feed mechanisms only move in one direction, preventing jams and ensuring smooth operation.

Fishing Reels: One-way bearings are employed in fishing reels to prevent the reel handle from spinning backward when a fish pulls the line out.

Industrial Machinery: In various industrial applications such as conveyors, indexing systems, and packaging equipment, one-way bearings help ensure precise and controlled

 motion in specific directions.

Power Transmission Systems: They are used in power transmission systems to prevent back-driving or reverse rotation in equipment such as gearboxes and couplings.

Overall, one-way bearings play a crucial role in numerous mechanical systems by providing efficient and reliable unidirectional motion control, enhancing performance, and

 preventing damage.
