Heavy-duty conveyor systems are the backbone of industries such as mining, cement, power generation, ports and bulk material handling. These systems often operate continuously under extreme loads, making reliable reverse rotation protection essential.
A backstop clutch prevents conveyors from rolling backward during power failures or emergency shutdowns, protecting expensive equipment and ensuring personnel safety.
Among the many industrial backstop solutions available worldwide, the Ringspann FRHD Series has long been recognized for its robust construction and dependable performance in low-speed, high-torque applications. Today, however, many OEM manufacturers, maintenance contractors and industrial distributors are seeking high-quality engineering alternatives that provide comparable performance, shorter lead times and better overall value.
This guide explains the working principles, technical features, applications and selection methods of FRHD-type backstop clutches, while introducing a reliable engineering alternative for demanding industrial applications.
The FRHD Series is a complete sprag-type backstop clutch with an integrated torque arm. It is specifically designed to prevent reverse rotation in low-speed drive systems while allowing free rotation in the driving direction.
Unlike conventional overrunning clutches used inside gearboxes, the FRHD Series is intended for external installation on conveyor head pulley shafts, reducers and other heavy-duty drive systems where extremely high backstopping torque is required.
According to the referenced FRHD catalog, the unit features:
Complete freewheel assembly with torque arm
Heavy-duty sprag locking mechanism
Built-in ball bearings
Oil-filled and ready for installation
Through-shaft or shaft-end mounting
Taconite seals for dusty environments
Designed specifically for backstopping applications in inclined conveyor systems, elevators and pumps
When the conveyor operates normally, the inner ring rotates freely while the sprags remain disengaged.
If power is lost or the drive system stops unexpectedly, the weight of conveyed material attempts to rotate the conveyor backward.
At this moment, the sprags immediately engage between the inner and outer races, locking the clutch and preventing reverse rotation. The reaction torque is transmitted through the integrated torque arm into the machine frame, protecting the gearbox, motor and conveyor system from damage. The catalog illustrates this arrangement on a head pulley shaft, with the torque arm bolted to the freewheel and reacting against the base plate.

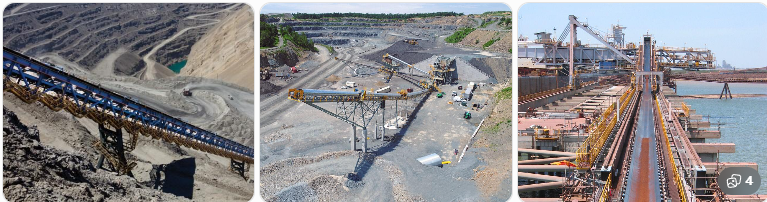

Open-pit mining conveyor systems
Underground mining conveyors
Cement plant conveyors
Clinker conveying systems
Bucket elevators
Grain storage facilities
Coal handling systems
Port bulk material conveyors
Aggregate and quarry processing plants
Industrial pump systems
These applications require continuous operation, reliable reverse locking and excellent resistance to shock loads.
The FRHD design has become one of the most widely used heavy-duty backstop solutions because of its integrated construction and durability.
The freewheel, bearings and torque arm are supplied as one complete unit, reducing installation complexity.
The sprag design provides rapid engagement with high torque transmission capability.
Each unit is supplied pre-lubricated and ready for installation, helping reduce commissioning time.
Special Taconite seals help protect internal components against dust and abrasive particles, making the design particularly suitable for mining and cement applications.
The FRHD Series supports maximum bores up to 21 inches (approximately 533 mm) and maximum torque ratings up to 1,800,000 lb-ft, making it suitable for very large conveyor systems.
Specification | FRHD Series |
|---|---|
Design | Complete Sprag-Type Backstop Clutch |
Mounting | Torque Arm |
Bearing Type | Ball Bearings |
Lubrication | Oil Filled |
Sealing | Taconite Seal |
Installation | Through Shaft / Shaft End |
Maximum Bore | 21 in (≈533 mm) |
Maximum Torque | 1,800,000 lb-ft |
Maximum Inner Ring Speed | 620 rpm |
Technical data summarized from the FRHD reference catalog.
The FRHD product family covers a wide range of shaft sizes and torque capacities for different conveyor applications.
Model | Maximum Torque (lb-ft) | Nominal Torque (lb-ft) | Maximum Speed (rpm) |
|---|---|---|---|
FRHD 700 | 7,500 | 3,750 | 620 |
FRHD 775 | 15,000 | 7,500 | 540 |
FRHD 800 | 24,000 | 12,000 | 460 |
FRHD 900 | 37,000 | 18,500 | 400 |
FRHD 950 | 46,000 | 23,000 | 360 |
FRHD 1000 | 56,000 | 28,000 | 360 |
FRHD 1100 | 90,000 | 45,000 | 360 |
FRHD 1200 | 185,000 | 92,500 | 250 |
FRHD 1300 | 220,000 | 110,000 | 220 |
FRHD 1400 | 280,000 | 140,000 | 200 |
FRHD 1450 | 380,000 | 190,000 | 200 |
FRHD 1500 | 580,000 | 290,000 | 200 |
FRHD 1600 | 746,000 | 373,000 | 140 |
FRHD 1700 | 1,250,000 | 625,000 | 120 |
FRHD 1800 | 1,800,000 | 900,000 | 100 |
Many industrial users evaluate alternative suppliers during equipment upgrades or maintenance projects. Common reasons include:
Shorter delivery times
Competitive factory-direct pricing
OEM and customized manufacturing
Improved supply chain flexibility
Local technical support
Long-term spare parts availability
A suitable engineering alternative should match the application's torque, speed, shaft dimensions and installation requirements rather than relying solely on the original model designation.
With 25 years of manufacturing experience, SUMA specializes in heavy-duty backstop clutches, one-way clutches and overrunning clutches for global industrial customers.
Our heavy-duty backstop clutch solutions are designed for the same demanding operating conditions found in mining, cement, power generation and bulk material handling industries.
Manufacturing experience of more than 25 years
High-quality alloy steel components
Precision machining and heat treatment
Heavy-duty sprag locking technology
Stable locking performance under shock loads
OEM & ODM manufacturing
Competitive factory pricing
Fast delivery and engineering support
SUMA engineers can recommend suitable solutions for applications commonly associated with the FRHD product family by evaluating the operating requirements rather than simply matching model numbers.
Choosing the correct backstop clutch requires a complete review of the operating conditions.
Before requesting a quotation, prepare the following information:
Existing model number
Required backstopping torque
Shaft diameter
Bore size
Maximum overrunning speed
Installation drawing
Mounting arrangement
Ambient temperature
Dust and moisture conditions
Conveyor inclination and load characteristics
Providing these details allows engineers to recommend the most appropriate solution for long-term reliability.
Yes, provided the replacement matches the required torque, shaft dimensions, speed, mounting arrangement and operating conditions. Model names alone are not sufficient for selection.
Mining, cement production, steel plants, grain storage, ports, power stations and bulk material handling facilities are among the most common applications.
Taconite seals help prevent dust and abrasive particles from entering the clutch, improving reliability in harsh environments such as mines and cement plants.
The most important information includes torque, shaft diameter, rotational speed, installation dimensions and the operating environment.
If you are looking for a reliable engineering solution for applications that currently use the Ringspann FRHD series, SUMA can provide professional technical support and high-quality heavy-duty backstop clutches tailored to your project.
Simply send us your existing model number, technical drawing or application parameters, and our engineering team will recommend a suitable solution based on your operating requirements.
