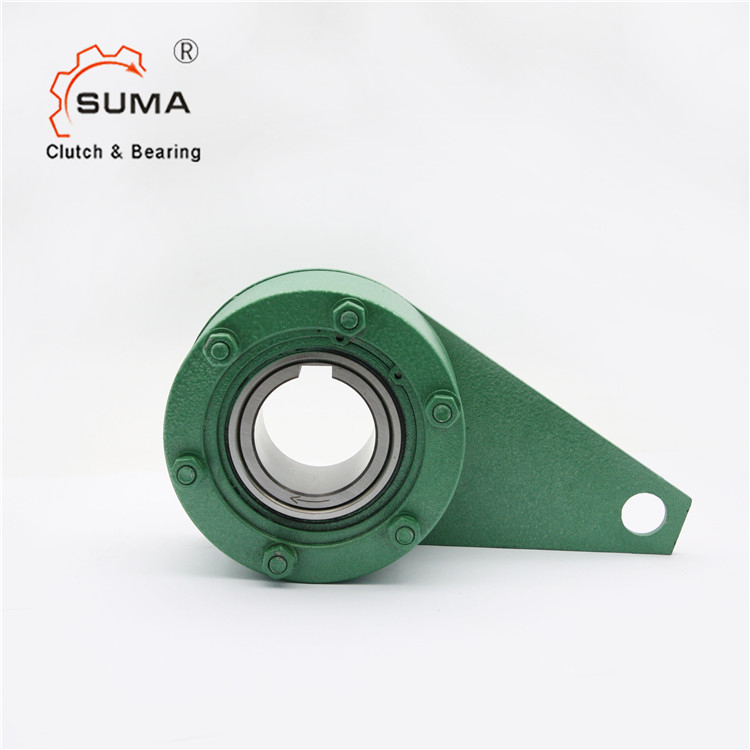

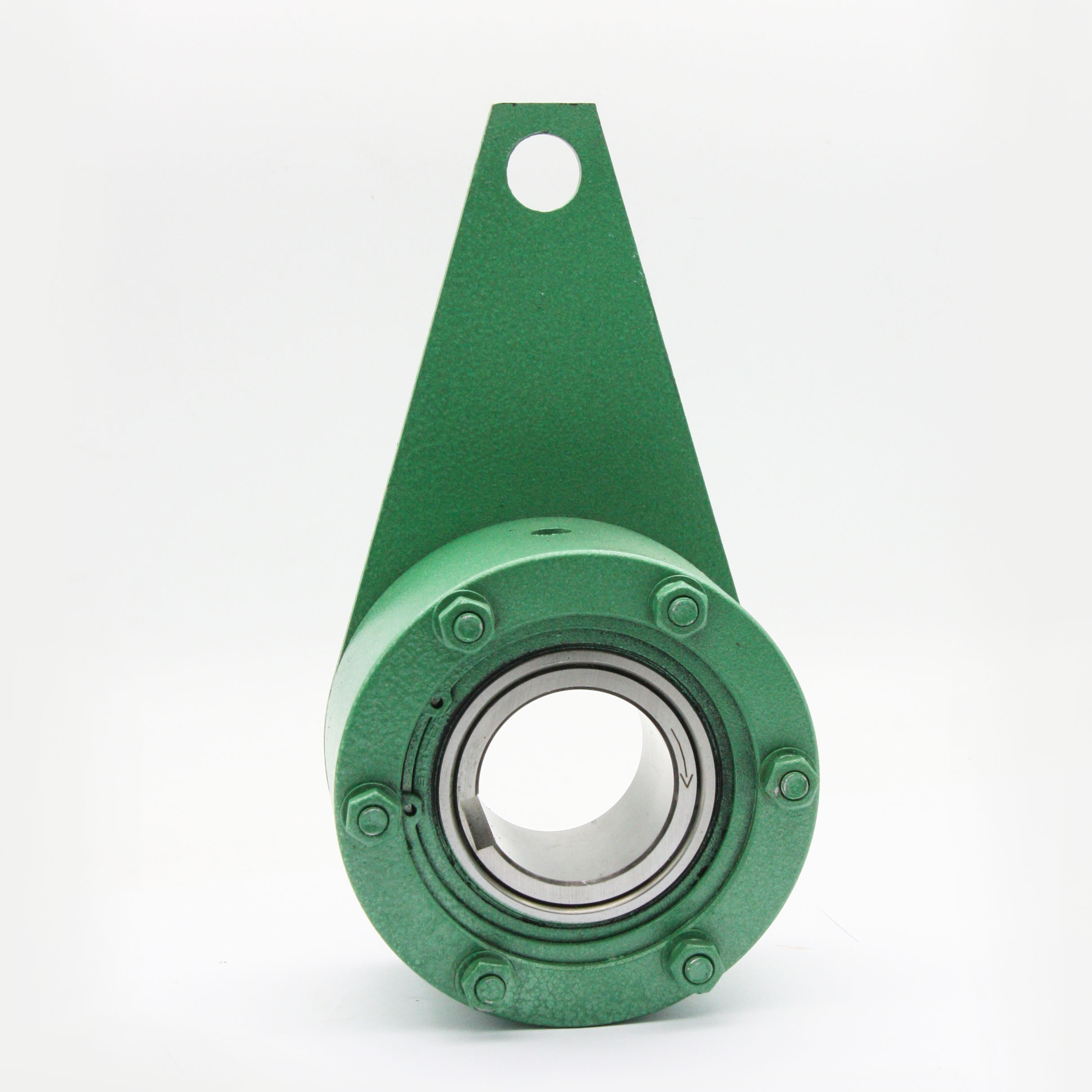

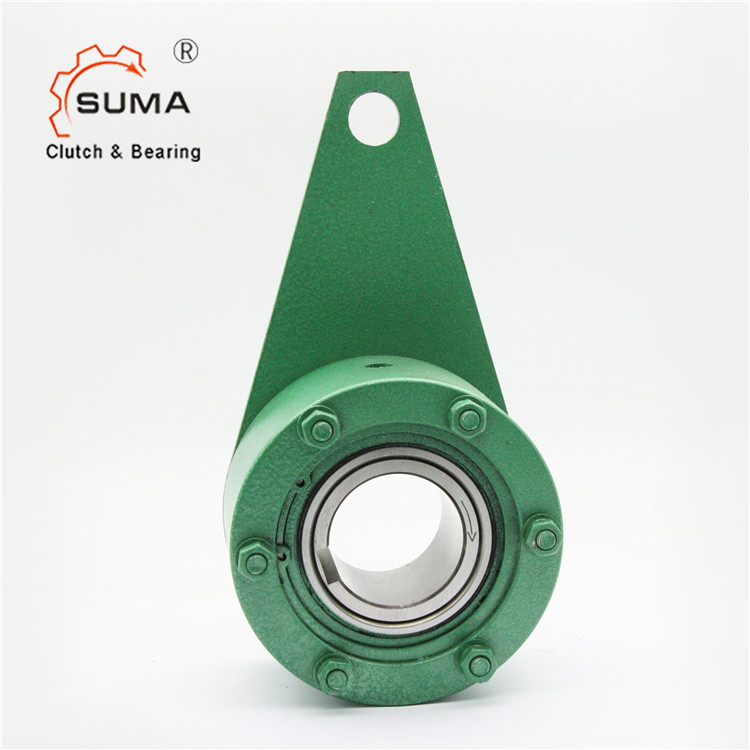

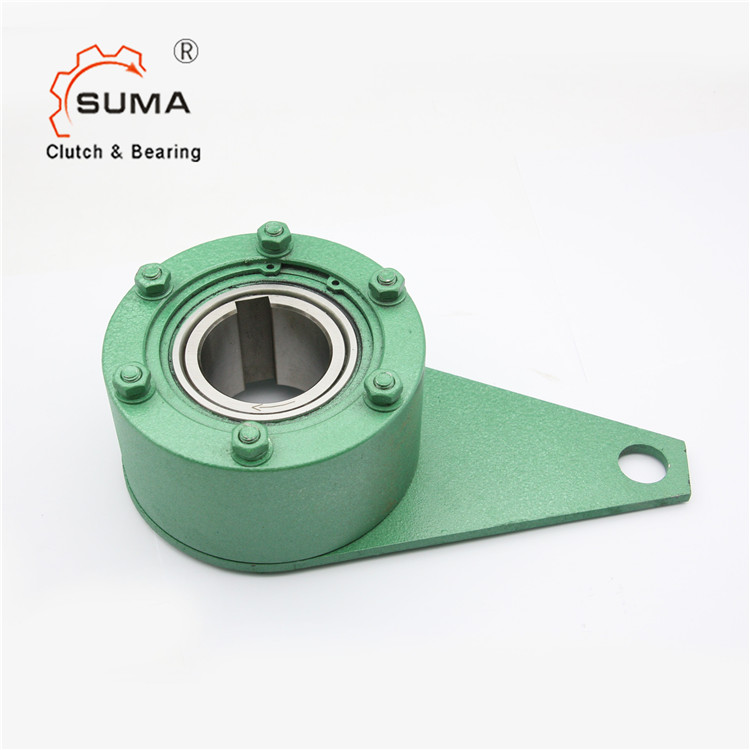

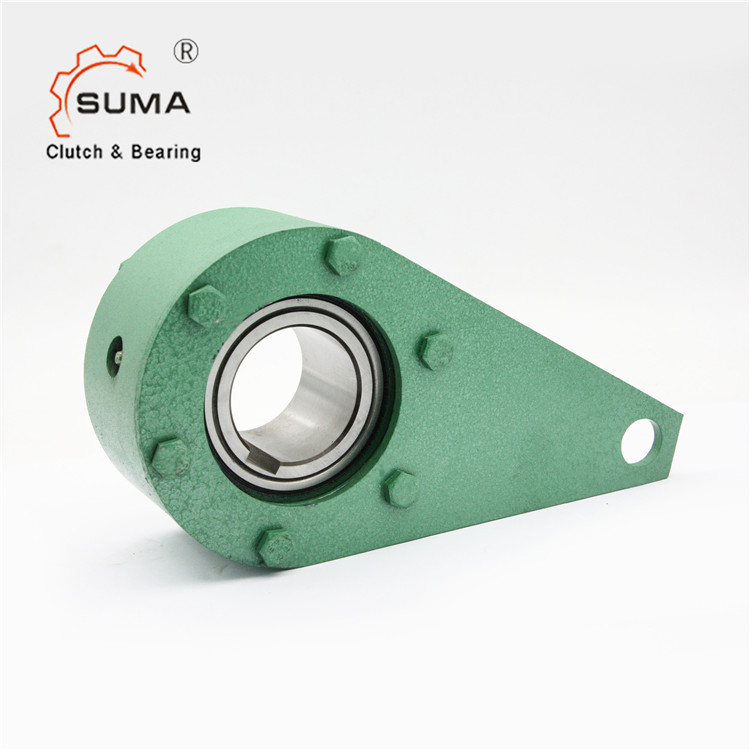

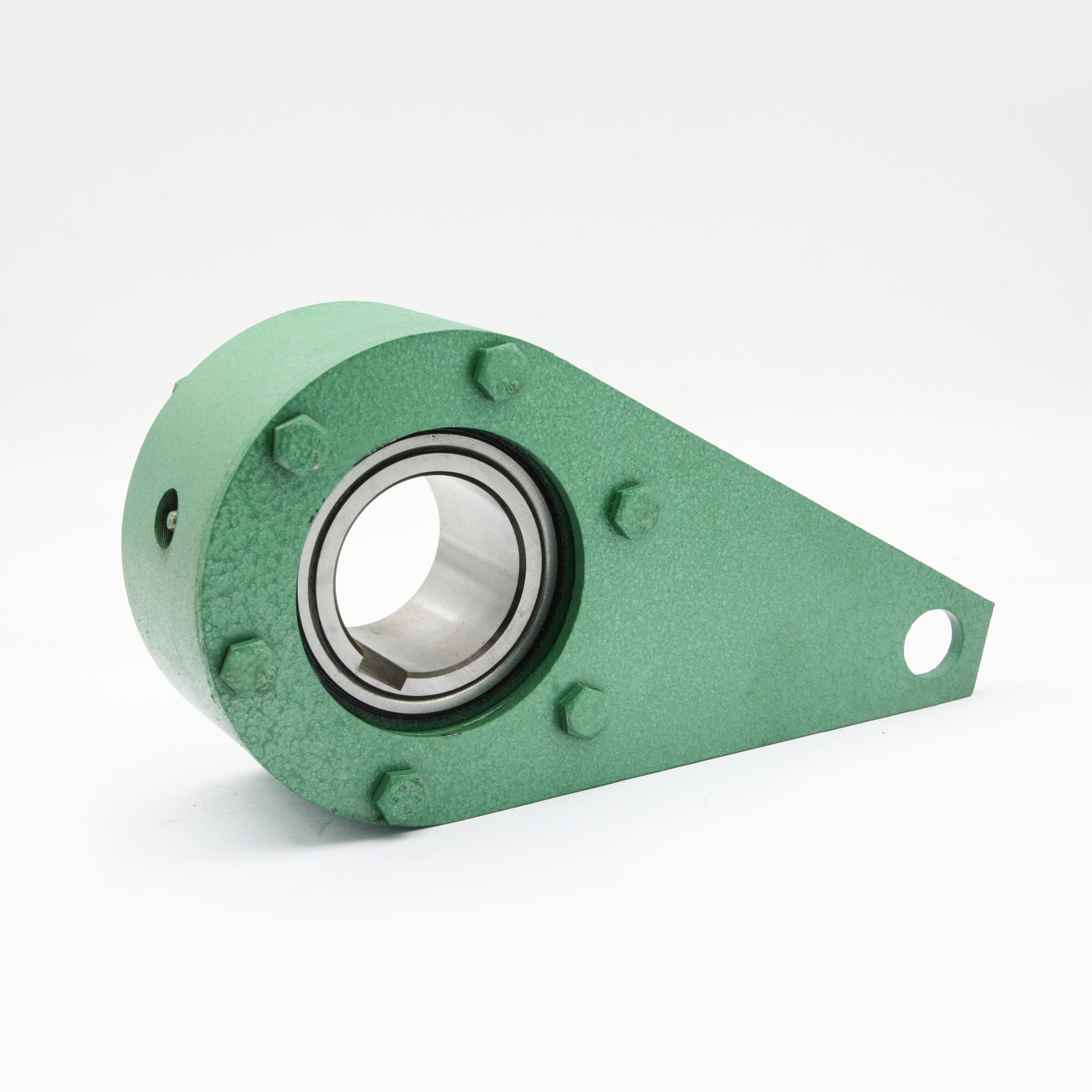

The BS-R Series Cam Clutch is utilized in scenarios necessitating consistent oil lubrication, dictated by either environmental factors or operational frequency. Incorporating an oil reservoir enhances the ease of upkeep for lubrication. Although the torque thresholds and maximum free-rotation speeds align with the conventional BS Series Cam Clutch, the additional oil volume contributes to reducing thermal accumulation, potentially prolonging the Cam Clutch's operational lifespan.
For placing an order for a Cam Clutch with an Oil Reservoir feature, the letter "R" indicative of the reservoir is placed within the sequence of the Cam Clutch's model size and the bore dimensions as demonstrated below.

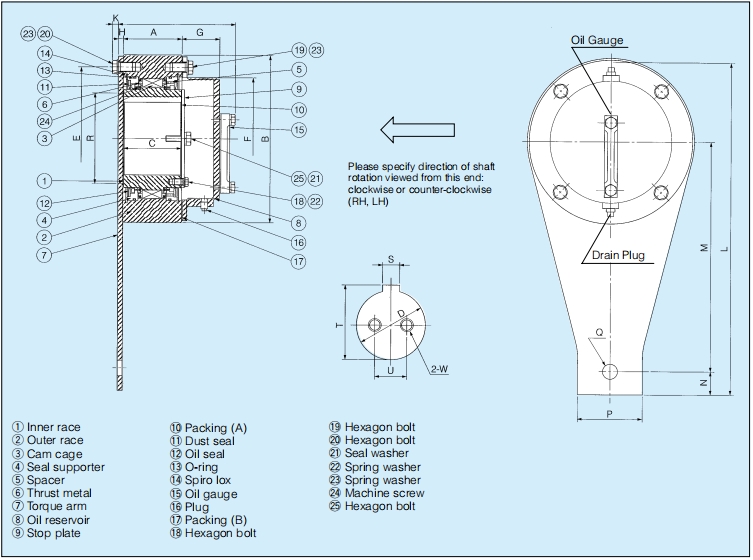

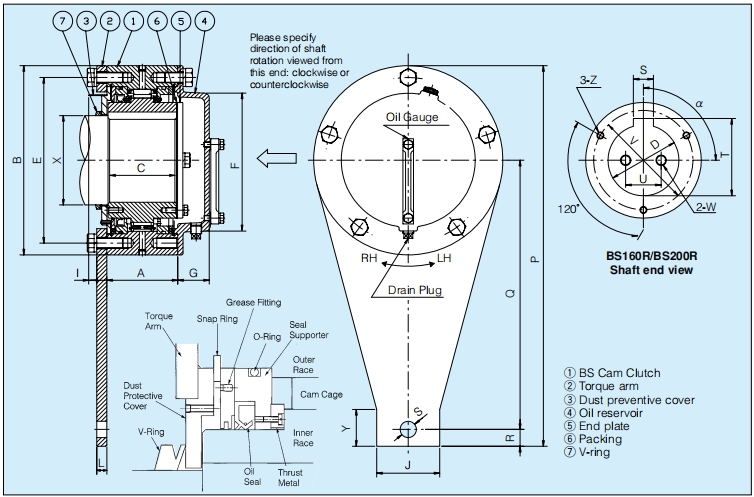

Parameter of BS Backstop Clutch Cam Clutch
BS-R High Transmission Backstop Clutch.pdf
|
|
| Max. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BS65R | 1,570 | 40to65 | 200 | 90 | 160 | 85 | 140 | 115 | 50 | 6 | 9.5 | 306 | 210 | 16 | 50 | 13.5 | 90 |
BS75R | 2,450 | 50 to75 | 180 | 90 | 170 | 85 | 150 | 125 | 50 | 6 | 9.5 | 354 | 250 | 19 | 65 | 16.5 | 100 |
BS85R | 5,880 | 60 to85 | 180 | 115 | 210 | 110 | 185 | 140 | 60 | 9 | 11 | 434 | 300 | 29 | 95 | 20.5 | 115 |
BS95R | 7,840 | 70 to95 | 170 | 115 | 230 | 110 | 200 | 160 | 60 | 9 | 12.5 | 497 | 350 | 32 | 105 | 20.5 | 130 |
BS110R | 10,800 | 80 to 110 | 170 | 115 | 270 | 110 | 220 | 180 | 60 | 12 | 14 | 560 | 385 | 40 | 110 | 26 | 140 |
BS135R | 15,700 | 90 to 135 | 120 | 135 | 320 | 130 | 280 | 230 | 60 | 12 | 14 | 666 | 470 | 36 | 120 | 26 | 180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BS160R | 24500 | 100 to 160 | 100 | 135 | 360 | 130 | 315 | 255 | 60 | 19 | 16 | 120 | 32 | 792 | 580 | 31 | 190 | 65 | M10 | 1300 | 108 | 95 |
BS200R | 37200 | 100 to 200 | 100 | 150 | 430 | 145 | 380 | 310 | 60 | 19 | 21 | 130 | 43 | 838 | 623 | 41 | 235 | 70 | M12 | 1900 | 182 | 155 |
◆ #2 Lithium-Based Grease is widely used for the cam clutch lubrication. Please contact Suma engineer if special grease are needed .
◆ Grease with Plumbum or Graphit are strictly forbidden.
◆ Lubrication grease was added before cam clutch leave factory, user can install the clutch directly. If clutch leave factory over 1 year or the grease has gone bad , need to clean clutch first then add specified amount grease to the clutch .
◆ Change grease every 3-6 months of backstop clutch based on user’s operating frequency. Add grease to clutch every one month .
1. Are you Trading Company or Manufacturer ?
SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years .
2. Can i have Samples to check quality first ?
It is okay to get backstop clutch sample for quality check .
3. How can i choose the correct backstop clutch i need ?
Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.
If you not so sure about it, pls share with us, our engineer will give you professional guidance .
4. What Material of the bearings you are supplied ?
Standard Material : GCr15
5. How soon you can make the shipment ?
Usually all are in stock, can ship out within 2-3 days .
If big quantity, can ship out in 10 days .
Customized sizes may need 15-20 days , Depends on specific order.
6. Is there guarantee of items purchased ?
We produce 1 year warranty for all backstop clutch we sell.
