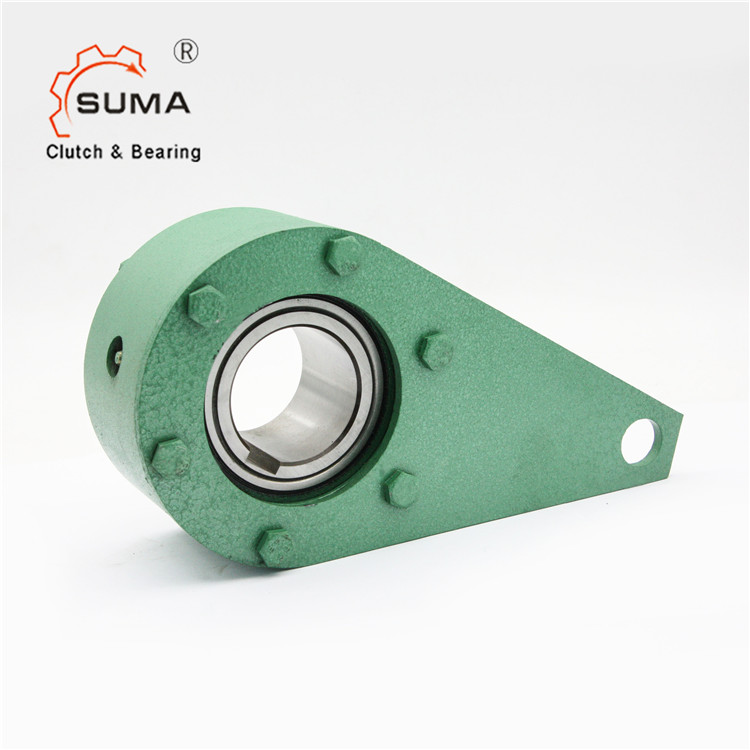

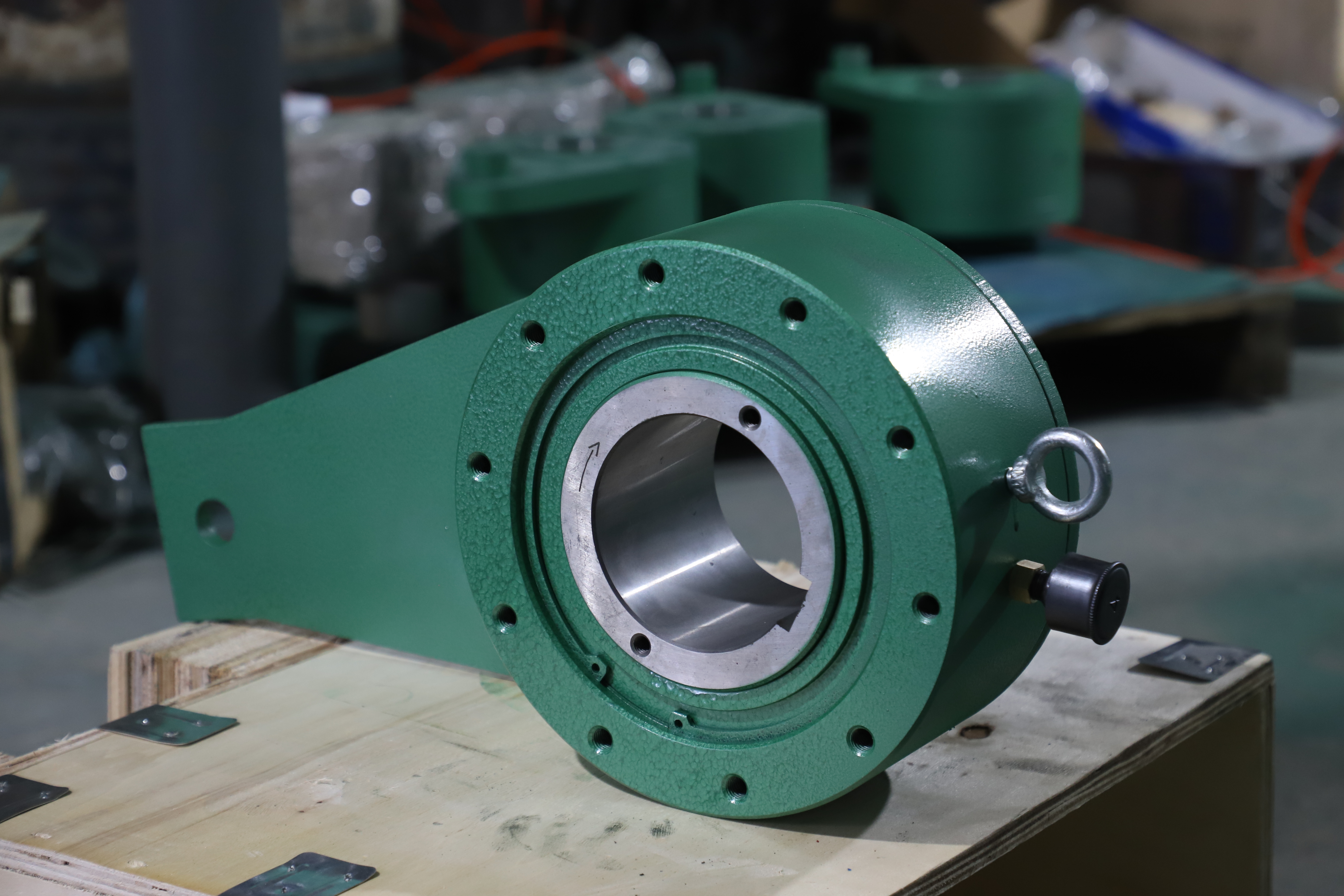

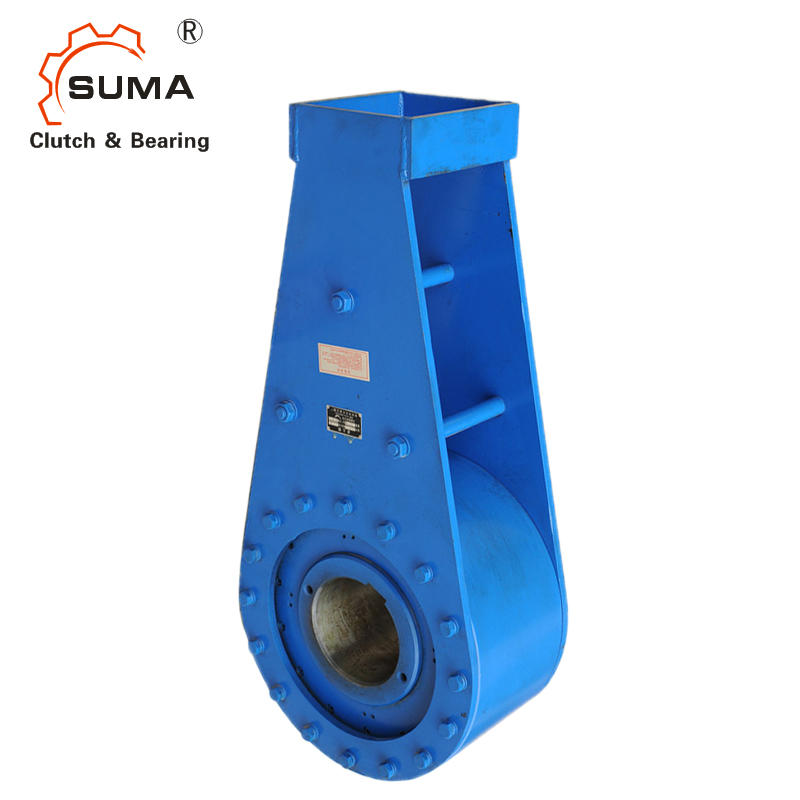

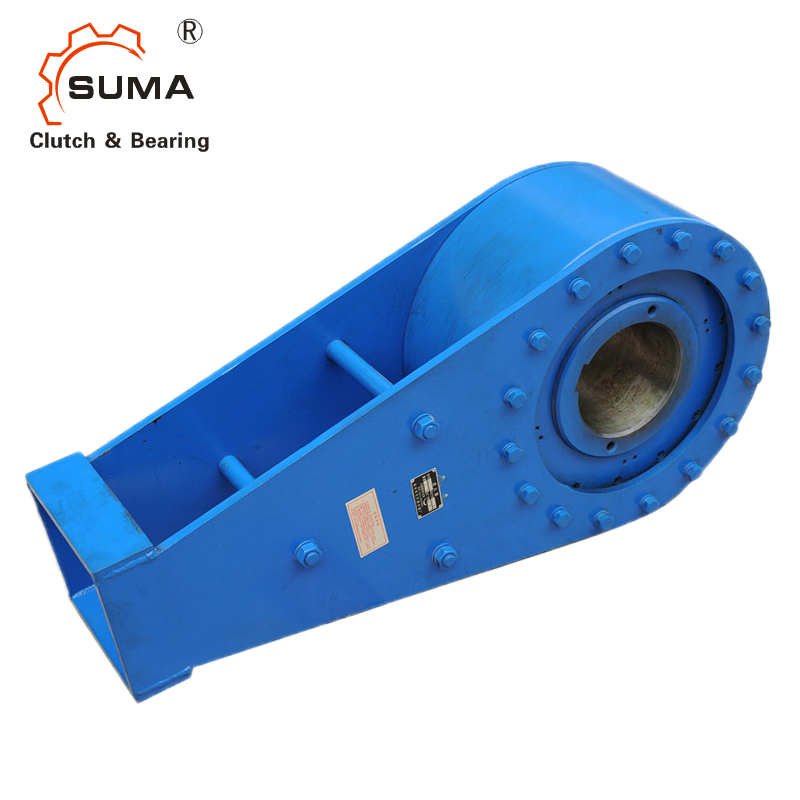

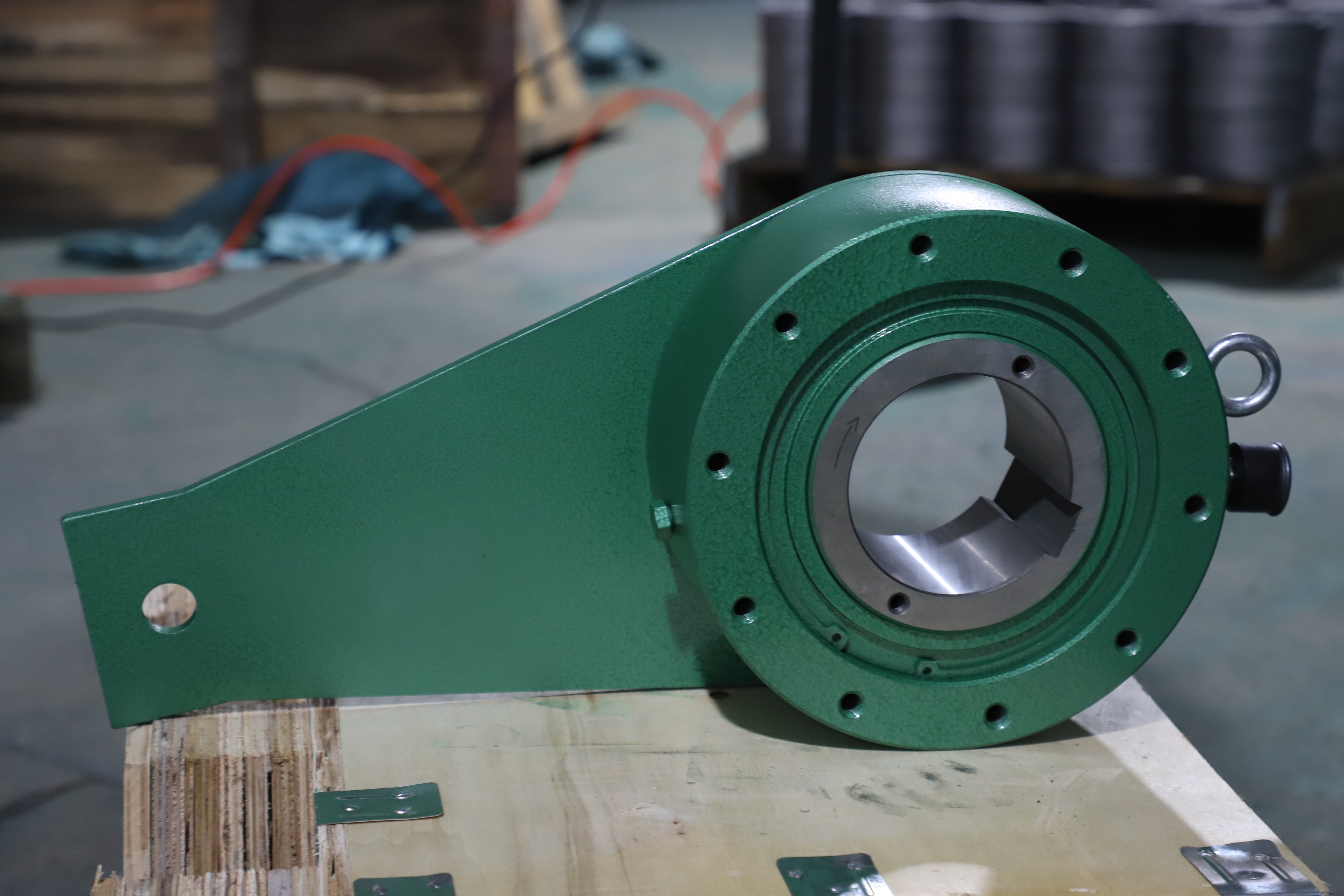

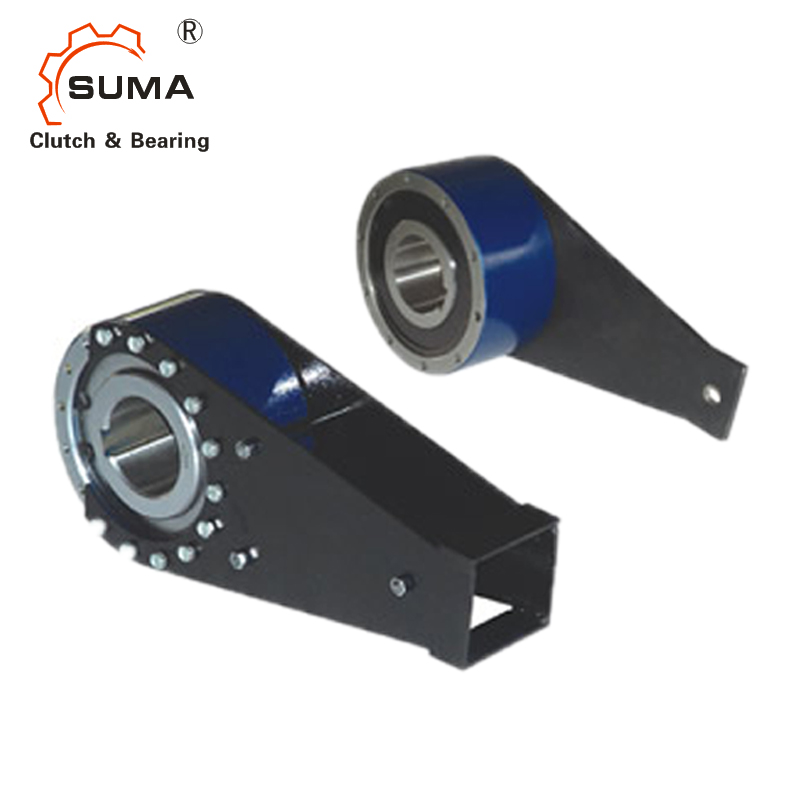

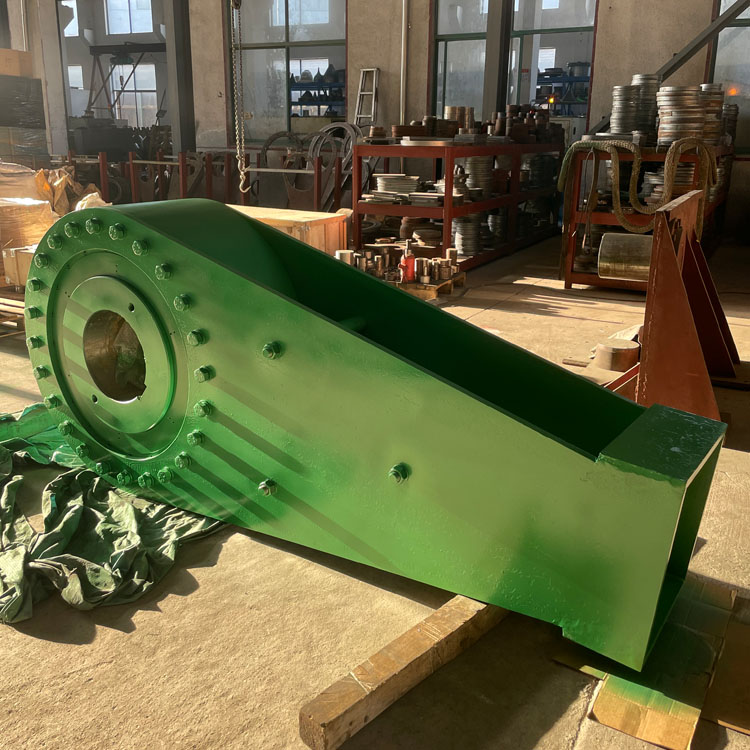

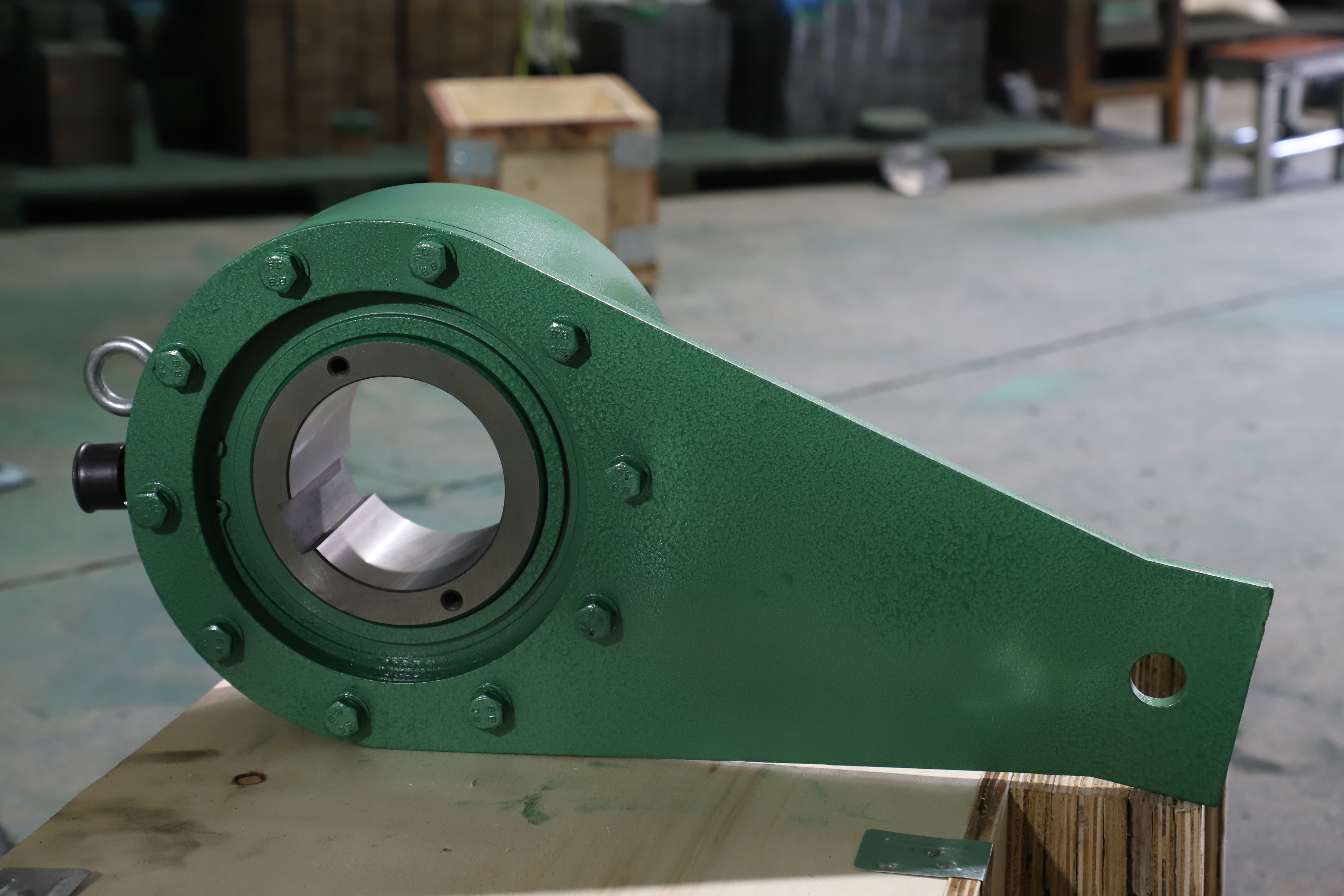

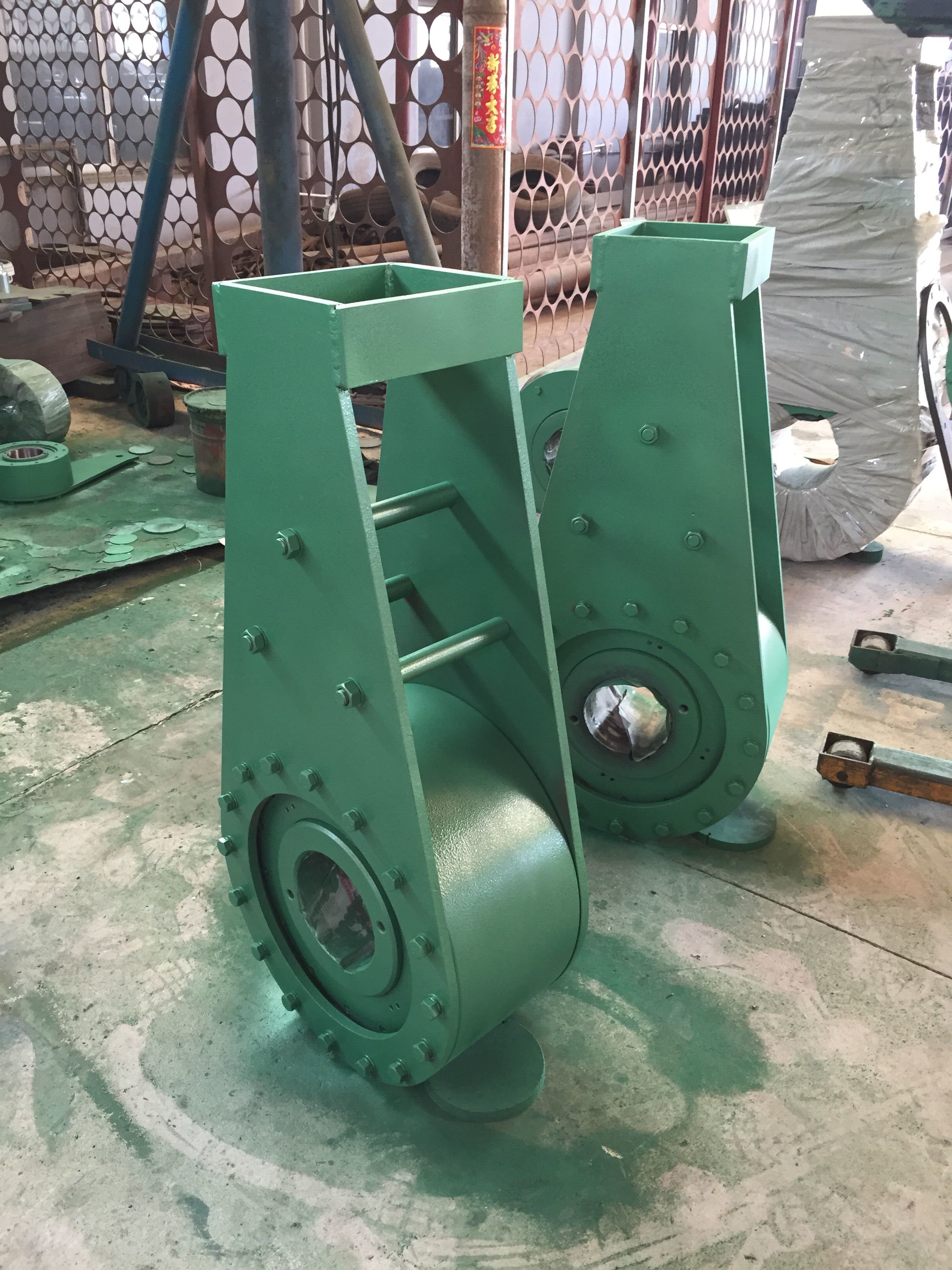

ND / NJ / NYD series Backstop Clutch is a kind of low-speed plugging decive , its structure is compact , light weight , reliable wedge, relief operation without blinding, installer, installation accuracy is not high. The non-return device id conveying equipment in a safe protection device . Apply to dry belt conveyor , bucket lift helicopters. The scraper conveyor and other requirements have a non-return device.
Parameter of BS Backstop Clutch Cam Clutch
Type | Load | Inner Race | Drag | Bore | Size (mm) | Weight | ||||||||
N.m | r/min | N.m | mm | A | B | D | H | h1 | Φ | h | L | L1 | kg | |
ND16 (NJ65 / NYD65 ) | 1600 | 150 | 4 | 50-65 | 50 | 6 | 160 | 226 | 16 | 13.5 | 30 | 85 | 106 | 13.5 |
ND25 (NJ75 / NYD75) | 2500 | 5 | 60-75 | 65 | 170 | 269 | 19 | 16.5 | 35 | 16.1 | ||||
ND60 (NJ85 / NYD85) | 6000 | 8 | 70-85 | 95 | 9 | 210 | 329 | 29 | 20.5 | 45 | 110 | 135 | 29.2 | |
ND80 (NJ95 / NYD95) | 8000 | 10 | 80-95 | 105 | 230 | 382 | 32 | 55 | 138 | 37.2 | ||||
ND110 (NJ110/ NYD110) | 11000 | 15 | 90-110 | 110 | 12 | 270 | 425 | 40 | 26 | 60 | 141 | 46.2 | ||
ND160 (NJ130/ NYD130) | 16000 | 100 | 20 | 100-130 | 120 | 320 | 506 | 36 | 65 | 130 | 161 | 82.8 | ||
ND250 (NJ160/ NYD160) | 25000 | 35 | 120-160 | 120 | 20 | 360 | 612 | 32 | 31 | 140 | 183 | 125 | ||
ND380 (NJ200/ NYD200) | 38000 | 45 | 160-200 | 130 | 430 | 623 | 43 | 41 | 70 | 160 | 207 | 180 | ||
ND500 (NJ220/ NYD220) | 50000 | 80 | 75 | 160-220 | 238 | 259 | 500 | 820 | 80 | - | 230 | 303 | 351 | |
ND650 (NJ230/ NYD230) | 65000 | 80 | 85 | 180-240 | 260 | 279 | 540 | 900 | 90 | - | 250 | 323 | 525 | |
ND900 (NJ250/ NYD250) | 90000 | 50 | 95 | 180-250 | 288 | 323 | 600 | 1000 | 100 | - | 290 | 367 | 675 | |
ND1250 (NJ270/ NYD270) | 125000 | 100 | 200-270 | 298 | 650 | 1100 | 110 | - | 737 | |||||
ND1800 (NJ300/ NYD300) | 180000 | 110 | 230-300 | 356 | 335 | 780 | 1300 | 135 | - | 290 | 392 | 1123 | ||
ND2700 (NJ320/ NYD320) | 270000 | 140 | 250-320 | 386 | 345 | 850 | 1500 | 135 | 320 | 412 | 1425 | |||
ND3200 (NJ350/ NYD350) | 320000 | 160 | 250-350 | 414 | 360 | 930 | 1600 | 135 | 360 | 426 | 1955 | |||
ND5200 (NJ420/ NYD420) | 520000 | 220 | 320-420 | 474 | 484 | 1030 | 1800 | 165 | 450 | 550 | 2930 | |||
ND7000 (NJ450/ NYD450) | 700000 | 250 | 350-450 | 526 | 494 | 1090 | 2000 | 165 | 480 | 574 | 3380 | |||
◆ #2 Lithium-Based Grease is widely used for the cam clutch lubrication. Please contact Suma engineer if special grease are needed .
◆ Grease with Plumbum or Graphit are strictly forbidden.
◆ Lubrication grease was added before cam clutch leave factory, user can install the clutch directly. If clutch leave factory over 1 year or the grease has gone bad , need to clean clutch first then add specified amount grease to the clutch .
◆ Change grease every 3-6 months of backstop clutch based on user’s operating frequency. Add grease to clutch every one month .
