FE448Z Overrunning Clutch Sprag One Way Bearings for Bikes
Brief Introduction of FE Sprag One Way Bearings
SUMA insert components come in various sizes. The FE 400 Z, FE 400 Z2, and FE 8000 Z collections are outfitted
with a tension spring. Designed for attachment to hardened and polished mating sections, SUMA insert
components are compatible with both oil and grease as lubricants.
These elements can serve multiple functions, including indexing clutches, backstops, or overrunning clutches.
The FE 400 Z selection features freewheel clutch inserts that incorporate tension springs.
Specifications of FE Sprag One Way Bearings :
Mounting breadth: 12 mm
Maximum operational heat: 140 °C (options available for higher temperatures upon request)
Indexing rate: up to 10 Hz
Lubrication options include oil or grease.
These components are provided with anti-corrosion protection, and pre-lubrication is available if specified.
Datasheet of FE Sprag One Way Bearings

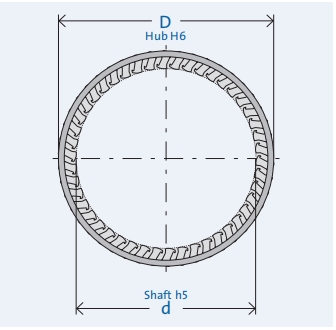

| Dimensions [mm] | FE 400 | FE 400 Z | FE 400 Z2 | Idling speed Clutch | ||||
| dL | DL | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | Part Number | Torque M [N.m] | nmax [RPM] |
| 2 | 10 | FE 410 Z2 | 0.3 | 10,000 | ||||
| 4 | 12 | FE 412 Z | 3 | FE 412 Z2 | 1.8 | 10,000 | ||
| 5 | 13 | FE 413 Z2 | 2.9 | 9,000 | ||||
| 6 | 14 | FE 414 Z | 7 | FE 414 Z2 | 2.6 | 8,500 | ||
| 8 | 16 | FE 416 Z | 12 | FE 416 Z2 | 7.6 | 7,500 | ||
| 14 | 22 | FE 422 | 48 | FE 422 Z | 44 | FE 422 Z2 | 21 | 5,300 |
| 15 | 23 | FE 423 | 55 | FE 423 Z | 48 | FE 423 Z2 | 24 | 5,200 |
| 17 | 25 | FE 425 | 68 | FE 425 Z | 58 | FE 425 Z2 | 30 | 4,700 |
| 19 | 27 | FE 427 | 80 | FE 427 Z | 66 | FE 427 Z2 | 36 | 4,400 |
| 20 | 28 | FE 428 | 87 | FE 428 Z | 75 | FE 428 Z2 | 39 | 4,200 |
| 22 | 30 | FE 430 | 101 | FE 430 Z | 87 | FE 430 Z2 | 46 | 4,000 |
| 24 | 32 | FE 432 | 116 | FE 432 Z | 97 | FE 432 Z2 | 52 | 3,700 |
| 25 | 33 | FE 433 | 124 | FE 433 Z | 107 | FE 433 Z2 | 56 | 3,600 |
| 27 | 35 | FE 435 | 141 | FE 435 Z | 121 | FE 435 Z2 | 64 | 3,400 |
| 29 | 37 | FE 437 | 158 | FE 437 Z | 137 | FE 437 Z2 | 71 | 3,200 |
| 30 | 38 | FE 438 | 168 | FE 438 Z | 144 | FE 438 Z2 | 76 | 3,100 |
| 34 | 42 | FE 442 | 207 | FE 442 Z | 178 | FE 442 Z2 | 93 | 2,800 |
| 35 | 43 | FE 443 | 217 | FE 443 Z | 187 | FE 443 Z2 | 98 | 2,700 |
| 40 | 48 | FE 448 | 272 | FE 448 Z | 235 | FE 448 Z2 | 122 | 2,500 |
| 45 | 53 | FE 453 | 333 | FE 453 Z | 281 | FE 453 Z2 | 146 | 2,200 |
| 50 | 58 | FE 458 | 400 | FE 458 Z | 345 | FE 458 Z2 | 178 | 2,000 |
| 51 | 59 | FE 459 | 414 | FE 459 Z | 357 | |||
| 55 | 63 | FE 463 | 472 | FE 463 Z | 407 | FE 463 Z2 | 202 | 1,900 |
| 60 | 68 | FE 468 | 550 | FE 468 Z | 474 | FE 468 Z2 | 243 | 1,750 |
| 62 | 70 | FE 470 | 583 | FE 470 Z | 502 | 1,700 | ||
| 65 | 73 | FE 473 | 633 | FE 473 Z | 545 | 1,600 | ||
| 70 | 78 | FE 478 | 722 | FE 478 Z | 622 | 1,500 | ||
| 80 | 88 | FE 488 | 914 | FE 488 Z | 788 | 1,300 | ||

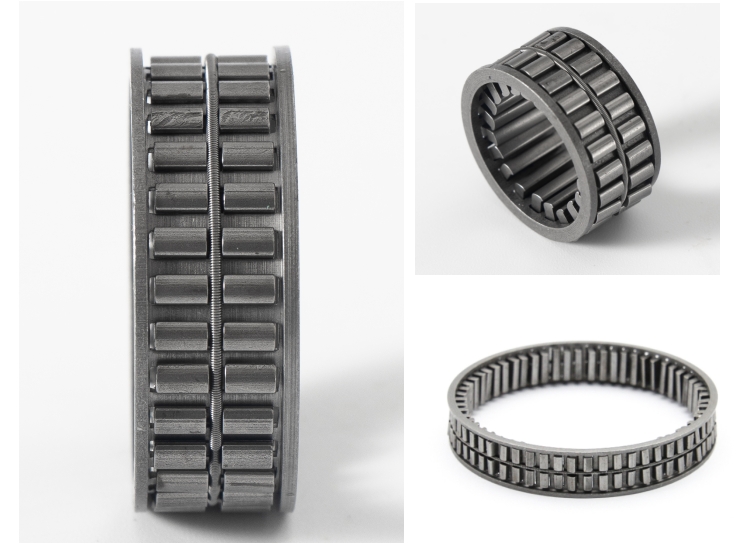

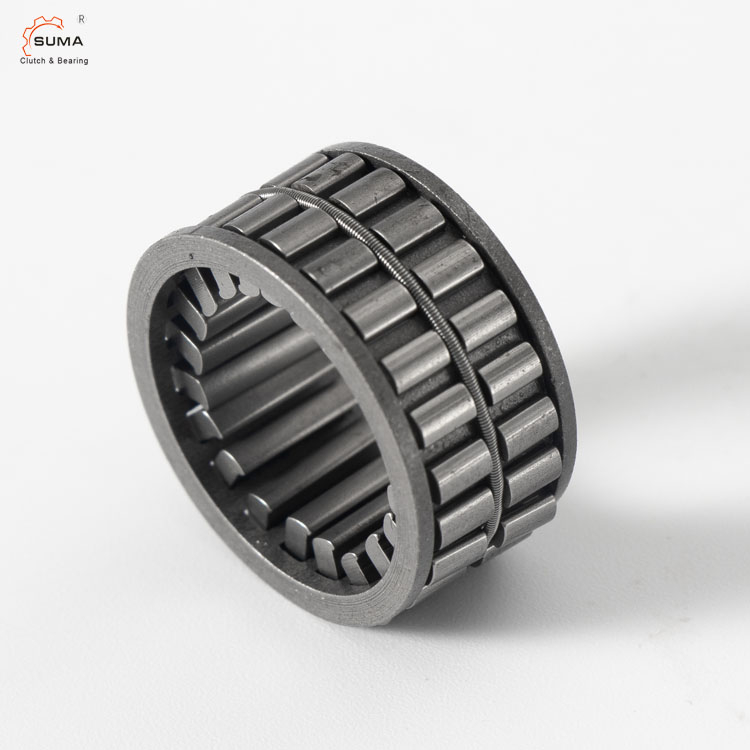

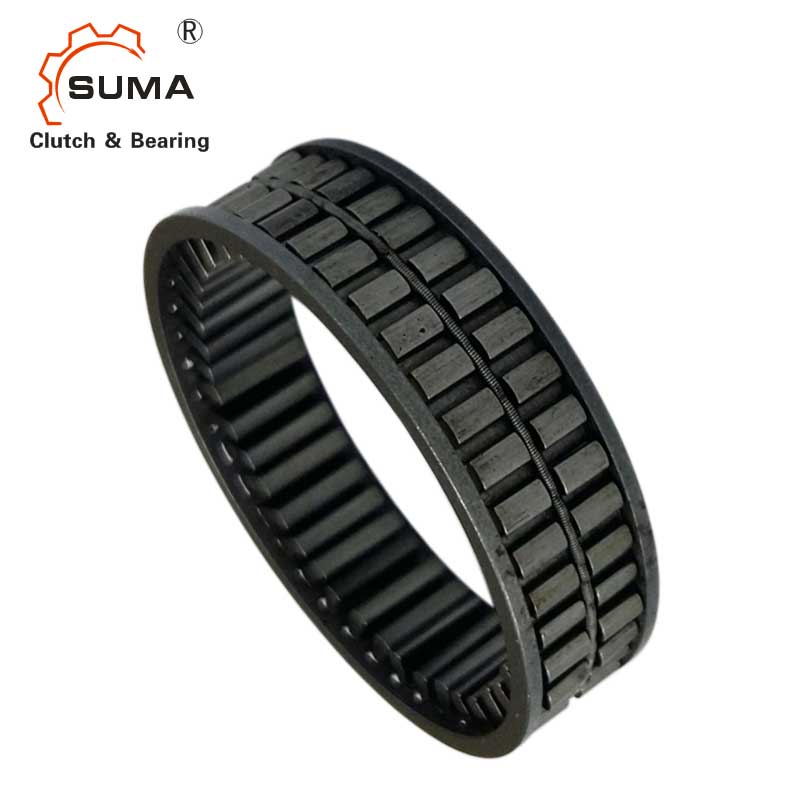

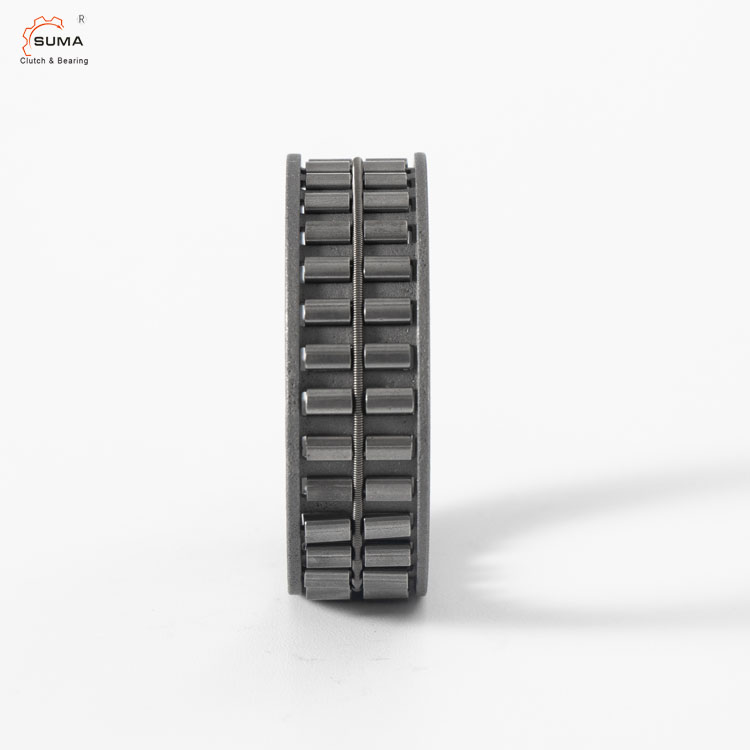

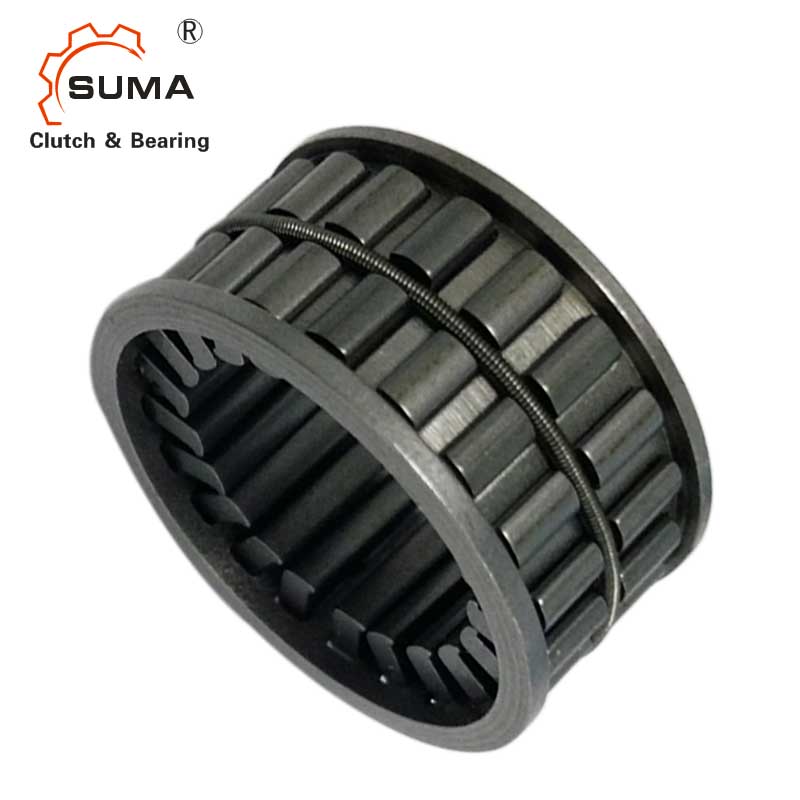

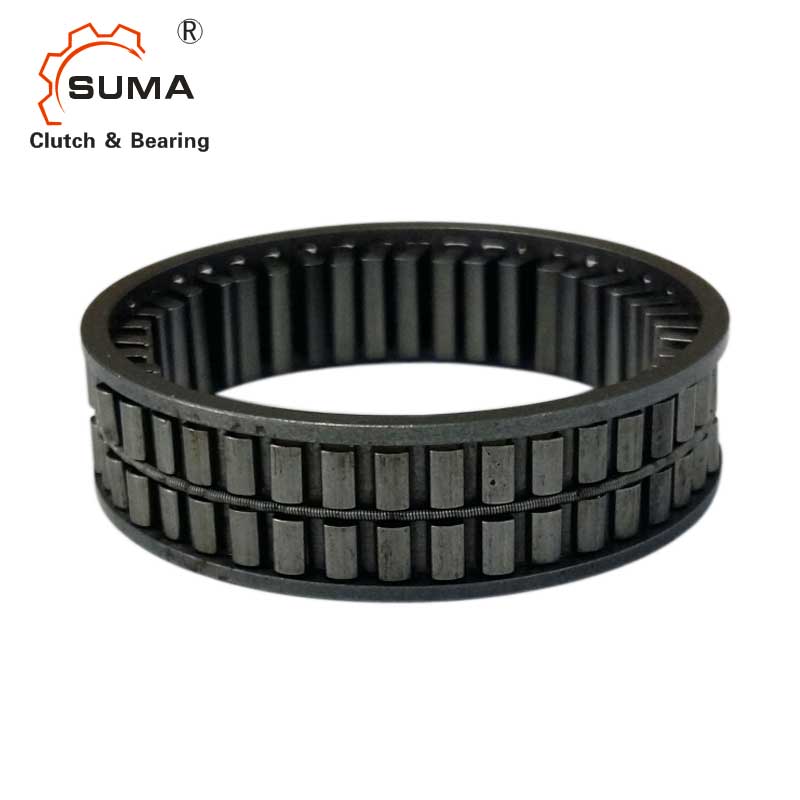

Photo of FE Sprag One Way Bearings
Testing Equipment of FE Sprag One Way Bearings
FAQ of FE Overrunning Clutch Sprag One Way Bearing
1. Are you Trading Company or Manufacturer ?
SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years .
2. Can i have FE Sprag One Way Bearings Samples to check quality first ?
It is okay to get FE Overrunning Clutch sample for quality check .
3. How can i choose the correct FE One Way Bearing i need ?
Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.
If you not so sure about it, pls share with us, our engineer will give you professional guidance .
4. What Material of the one way bearings you are supplied ?
Standard Material : GCr15 Bearing Steel
5. How soon you can make the shipment ?
Usually all are in stock, can ship out within 2-3 days .
If big quantity, can ship out in 10 days .
Customized sizes may need 15-20 days , Depends on specific order.
6. Is there guarantee of items purchased ?
We produce 1 year warranty for all backstop clutch we sell.
