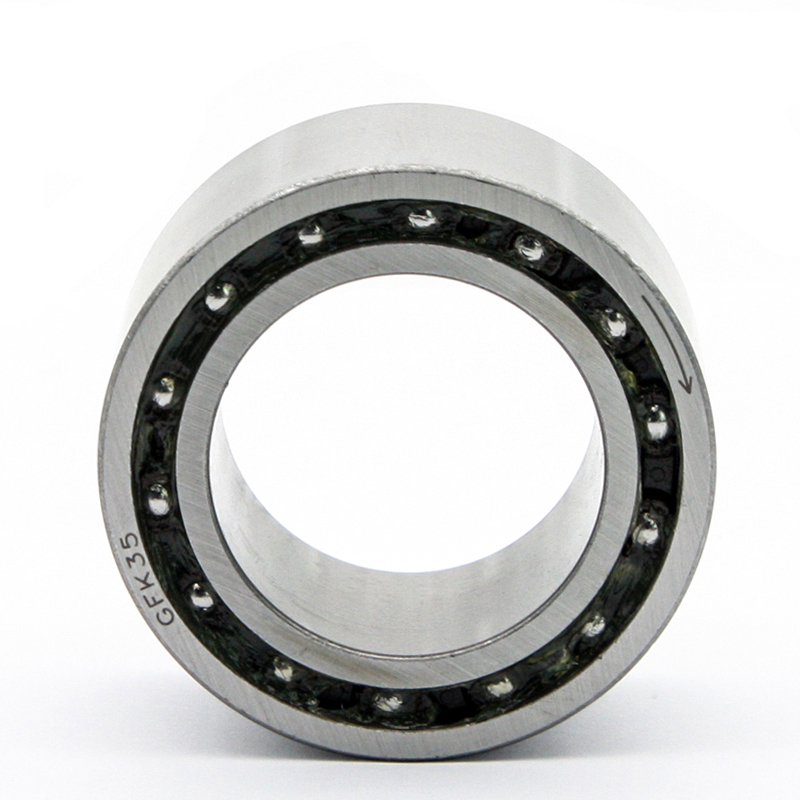

GFK one-way clutch for industrial power transmission

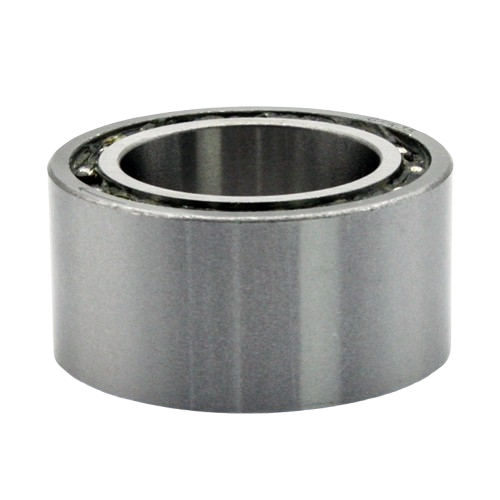

Compact GFK one-direction clutch with high torque capacity

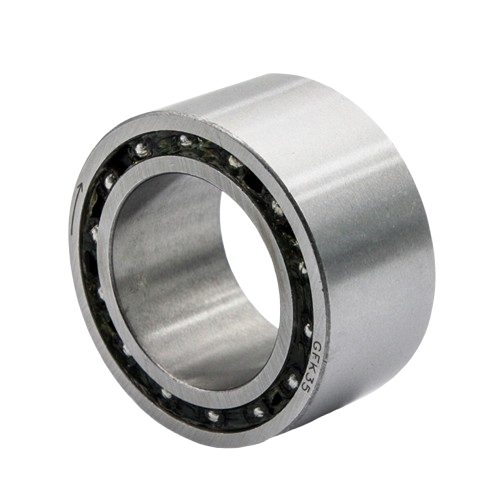

GFK mechanical one-way bearing clutch assembly

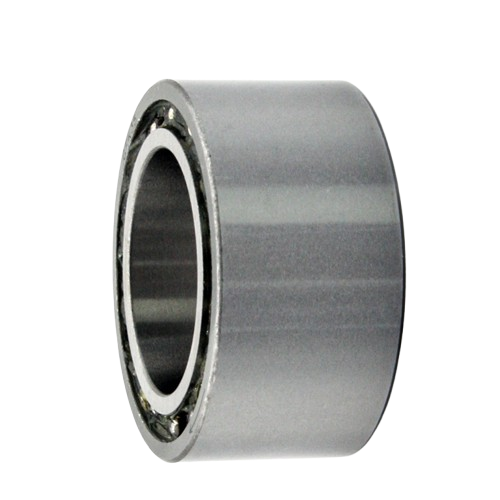

GFK backstop clutch designed for safety and reliability

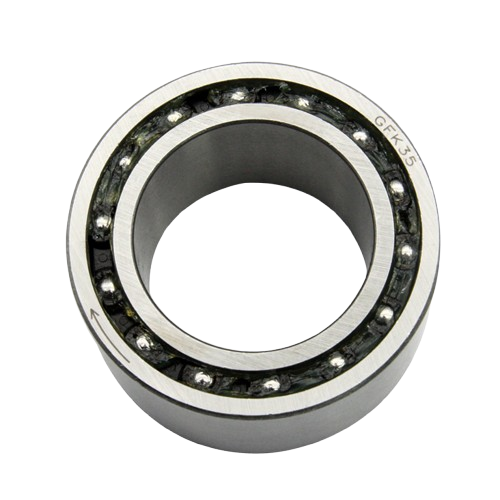

GFK overrunning clutch used in conveyor systems

Share to:

GFK Series GFK35 Sprag Type Freewheel One Way Sprag Clutch Bearing

Model:
GFK35
Brand:
SUMA

Availability:



Inquiry Add to Basket

Product Description

GFK Series GFK35 Sprag Type Freewheel One Way Sprag Clutch Bearing

Brief Introduction of GFK One Way Clutch Bearing

Type GFK is a sprag type freewheel integrated into a 59.. series ball bearing. This design provides high torque capacity for minimal outside diameter. It is a bearing supported type, delivered grease lubricated. Oil bath lubrication is also possible. Whatever the lubrication type, seals should be provided.

Torque transmission must be ensured by a press fit assembly into a rigid outer housing with R6 tolerance, and onto a shaft with p5 tolerance.

Initial radial clearance has been provided to take into account this heavy press fit. Operating temperature range: -20℃ to +100°C. Peaks up to +120℃ are acceptable for short periods.

Datasheet of GFK One Way Clutch Bearing

GFK One Way Clutch.pdf

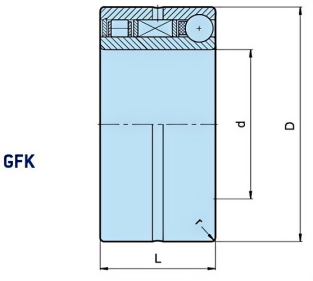

GFK Drawing

型号 Type	尺寸 Size	扭矩 Torque	超越转速 Overrunning speeds		轴承系列 Bearing series	载荷 Loads				外形尺寸 Dimensions			重量 Weight
	尺寸 Size	扭矩 Torque	超越转速 Overrunning speeds		轴承系列 Bearing series	Rollers dyn.	Balls dyn.	Rollers stat.	Balls stat.	外形尺寸 Dimensions			重量 Weight
	d [mm]	T_KN¹⁾ [Nm]	n_imax²⁾ [min^-1]	n_amax³⁾[min^-1]		C [N]	C [N]	C₀ [N]	C₀ [N]	D [mm]	L [mm]	r [mm]	[kg]
	d [mm]	T_KN¹⁾ [Nm]	n_imax²⁾ [min^-1]	n_amax³⁾[min^-1]		C [N]	C [N]	C₀ [N]	C₀ [N]	D [mm]	L [mm]	r [mm]	[kg]
GFK	20	51	5500	4000	5904	5600	4400	2900	2750	37	23	0.5	0.09
	25	65	5300	3800	5905	6300	5300	3450	3350	42	23	0.5	0.11
	30	95	5000	3500	5906	7700	5500	4600	3650	47	23	0.5	0.13
	35	204	4600	3200	5907	8200	8500	5200	5700	55	27	1	0.20
	40	315	4200	3000	5908	8650	9300	5750	6700	62	30	1	0.30
	45	370	3800	2500	5909	9200	9700	6350	7300	68	30	1	0.34
	50	460	3400	2200	5910	9650	10000	6950	7800	72	30	1	0.36

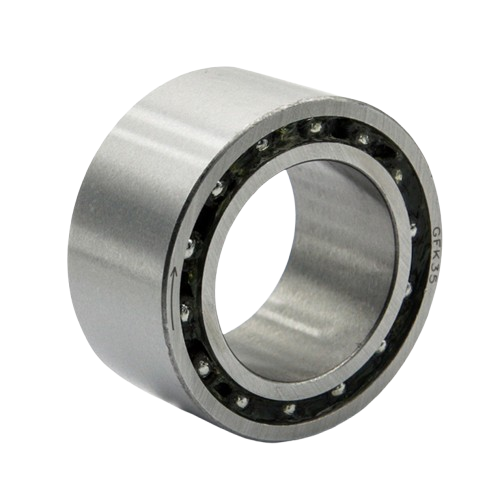

Photo of GFK One Way Clutch Bearing

Testing Equipment of GFK Sprag One Way Bearings

FAQ of GFK Overrunning Clutch One Way Bearing

1. Are you Trading Company or Manufacturer ?

SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years.

2. What is the GFK series one-way clutch used for?

The GFK clutch is designed for overrunning, backstopping, and indexing applications in machinery such as conveyors, packaging systems, automated equipment, and industrial drive systems.

3. What Material of the GFK one way bearings you are supplied ?

Standard Material : GCr15 Bearing Steel

4. How soon you can make the shipment ?

Usually all are in stock, can ship out within 2-3 days .

If big quantity, can ship out in 10 days .

Customized sizes may need 15-20 days , Depends on specific order.

5. Is there guarantee of items purchased ?

We produce 1 year warranty for all backstop clutch we sell.

6. How does the GFK one-way clutch work?

The GFK clutch allows torque transmission in one direction while freewheeling in the opposite direction, providing reliable motion control and preventing reverse rotation.
