One Way Sprag Clutch Bearing BWX 13168 Overrunning Clutch
Brief Introduction of BWX Overrunning Clutch One Way Bearings
Type BWX is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.
The BWX type version-N accepts all types of lubricants currently used in the power transmission equipment.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly. Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.
Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum.
Core hardness to be HRC35to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.
Type BWX is a sprag-type freewheel cage without inner or outer races. It must be installed in a setup that includes
races, bearing support for both axial and radial loads, lubrication, and sealing.
The BWX type version-N is compatible with all lubricants commonly used in power transmission equipment.
The tolerance for sprag spacing must be maintained within specified limits. Both inner and outer races need a
minimum plain width "e," without any recess, to ensure proper freewheel operation. Alternatively, races can be
machined directly onto case-hardened steel shafts or housings, following the specifications below:
- Surface hardness of the finished part should be HRC 60 to 62, with a minimum depth of 0.6 mm.
- Core hardness should range from HRC 35 to 45.
- Surface roughness should not exceed 22 CLA.
- Maximum allowable taper between races is 0.007 mm over a 25 mm width.

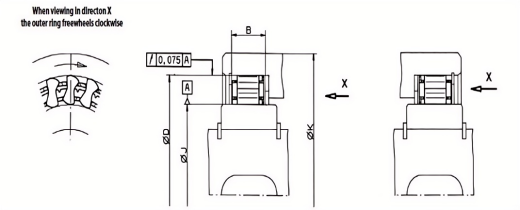

Datasheet of BWX One Way Bearings Overrunning Clutch
型号 Type | 额定扭矩Nominal | J | D | B | K | 楔块 数量Sprags | Drag strips | Brake clips | Design as ill. | 重量Weight |
MN [Nm] | +0.008 | ±0.013 | mm | mm | 数量Quantity | 数量Quantity | ||||
-0.005 | ||||||||||
BWX133590A | 63 | 22,225 | 38,887 | 10,0 | 44,0 | 12 | 109-2 | 0,03 | ||
BWX13143A | 120 | 27,767 | 44,425 | 13,5 | 51,0 | 14 | 109-2 | 0,06 | ||
BWX133392 | 280 | 38,092 | 54,750 | 16,0 | 71,0 | 18 | 109-3 | 0,09 | ||
BWX1310145 | 180 | 41,275 | 57,937 | 13,5 | 74,2 | 14 | 3 | 109-2 | 0,07 | |
BWX132909A | 360 | 44,450 | 61,112 | 16,0 | 78,5 | 20 | 2 | 3 | 109-2 | 0,10 |
BWX133339 | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 2 | 4 | 109-2 | 0,09 |
BWX1310003 | 310 | 49,721 | 66,383 | 13,5 | 85,0 | 22 | 4 | 109-2 | 0,09 | |
BWX137222 | 570 | 49,721 | 66,383 | 19,0 | 85,0 | 22 | 109-2 | 0,12 | ||
BWX1310445 | 400 | 54,765 | 71,427 | 13,5 | 91,7 | 24 | 109-2 | 0,09 | ||
BWX1310172 | 540 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 109-2 | 0,12 | ||
BWX1310226 | 520 | 54,765 | 71,427 | 16,0 | 91,7 | 24 | 2 | 4 | 109-2 | 0,12 |
BWX136709 | 770 | 54,765 | 71,427 | 21,0 | 91,7 | 24 | 3 | 10 | 109-2 | 0,16 |
BWX1310147 | 1000 | 54,765 | 71,427 | 25,4 | 91,7 | 24 | 3 | 8 | 109-2 | 0,20 |
BWX136324 | 600 | 57,760 | 74,427 | 19,0 | 95,0 | 26 | 109-3 | 0,14 | ||
BWX1310080 | 670 | 72,217 | 88,882 | 13,5 | 115,0 | 30 | 4 | 109-2 | 0,12 | |
BWX13168 | 1300 | 72,217 | 88,882 | 21,0 | 115,0 | 30 | 109-3 | 0,20 | ||
BWX134012 | 1300 | 72,217 | 88.882 | 21,0 | 115,0 | 30 | 4 | 10 | 109-3 | 0,20 |
BWX137322 | 2.000 | 796,982 | 96,363 | 25,4 | 124,0 | 34 | 5 | 12 | 109-2 | 0,28 |
BWX138316 | 2960 | 835,972 | 102,596 | 25,4 | 131,6 | 34 | 5 | 12 | 109-2 | 0,30 |
BWX13261A1 | 1600 | 1,032,312 | 119,893 | 16,0 | 154,0 | 40 | 6 | 10 | 109-3 | 0,19 |
BWX13236 | 1700 | 1,173,912 | 136,391 | 16,0 | 175,3 | 30 | 5 | 6 | 109-3 | 0,25 |
BWX133403B | 4900 | 1,238,812 | 142,880 | 25,4 | 188,0 | 44 | 11 | 109-2 | 0,46 |

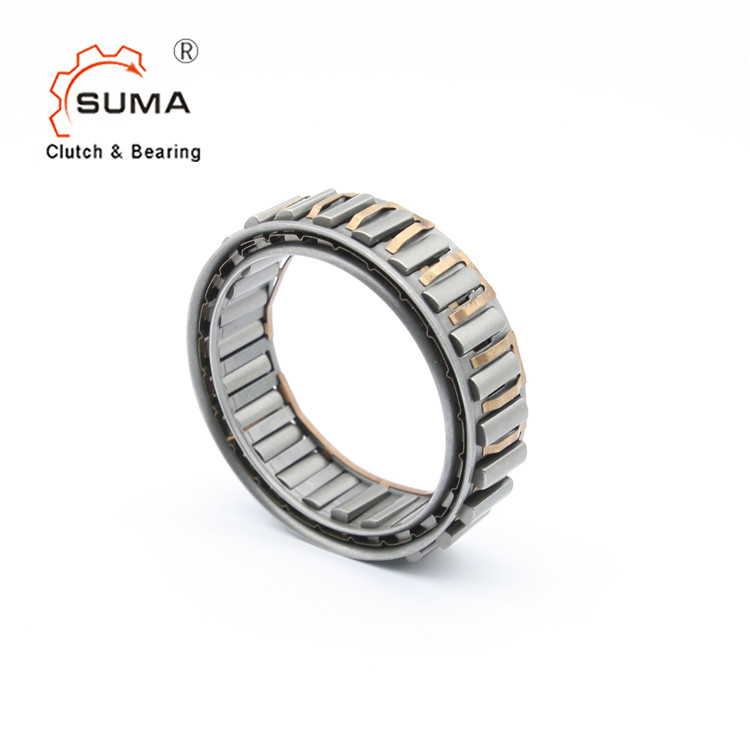

Photo of BWX One Way Bearings Overrunning Clutch
Testing Equipment of BWX Sprag One Way Bearings
FAQ of BWXC Overrunning Clutch One Way Bearing
1. Are you Trading Company or Manufacturer ?
SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years .
2. Can i have BWX Sprag One Way Bearings Samples to check quality first ?
It is okay to get BWX Overrunning Clutch sample for quality check .
3. How can I choose the correct BWX One Way Bearing i need ?
Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.
If you not so sure about it, pls share with us, our engineer will give you professional guidance .
4. What Material of the BWX one way bearings you are supplied ?
Standard Material : GCr15 Bearing Steel
5. How soon you can make the shipment ?
Usually all are in stock, can ship out within 2-3 days .
If big quantity, can ship out in 10 days .
Customized sizes may need 15-20 days , Depends on specific order.
6. Is there guarantee of items purchased ?
We produce 1 year warranty for all backstop clutch we sell.
