NFR Series NFR30 Sprag Type Freewheel One Way Sprag Clutch Bearing

Model:
NFR30
Brand:
SUMA

Availability:



Inquiry Add to Basket

Product Description

NFR Series NFR30 Sprag Type Freewheel One Way Sprag Clutch Bearing

Brief Introduction of NFR One Way Clutch Bearing

Type NFR is a bearing supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation.

Standard lubrication is oil. Size 8 to 20 units use steel on steel bearing support from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed capacity.

The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7. Additional side notches provide for positive torque transmission. The housing must be strong enough to not expand after assembly.

Datasheet of NFR One Way Clutch Bearing

NFR ONE WAY BEARING.pdf

NFR Series Drawing

Type	Size	Torque	Overrunning speeds		Bearing	Dimensions									Weight
Type	d7 [mm]	T_KN¹⁾ [Nm]	n_imax²⁾ [min^-1]	n_amax³⁾[min^-1]	Bearing	D_n6 [mm]	D₂ [mm]	D₄ [mm]	L [mm]	I [mm]	T [mm]	b^H11 [mm]	R [mm]	r₁ [mm]	[kg]
NFR	8	20	1000	1000	*	37	20	30	20		3	6	1	1.5	0.1
	12	20	1000	1000	*	37	20	30	20		3	6	1	1.5	0.1
	15	78	850	850	*	47	26	37	30		3.5	7	1.5	1.5	0.3
	20	188	650	650	*	62	37	52	36		3.5	8	2	2	0.6
	25	250	2100	3600	16008**	80	40	68	40	0.2	4	9	2.5	2	1.2
	30	500	1700	3200	16009**	90	45	75	48	0.2	5	12	2.5	2	1.8
	35	663	1550	3000	16010**	100	50	80	53	1.2	6	13	2.5	2.5	2.4
	40	1100	1150	2600	16011**	110	55	90	63	2.2	7	15	3	2.5	3.3
	45	1500	1000	2400	16012**	120	60	95	63	2.2	7	16	3	2.5	4.0
	50	2375	800	2150	16014**	130	70	110	80	2.7	8.5	17	3.5	3	5.7
	55	2550	750	2000	16015**	140	75	115	80	4.2	9	18	3.5	3	6.5
	60	4250	650	1900	16016**	150	80	125	95	3.2	9	18	3.5	3.5	8.9
	70	5875	550	1750	16018**	170	90	140	110	1.1	9	20	3.5	3.5	13.5
	80	10000	500	1600	16021**	190	105	160	125	0	9	20	4	3.5	19.0
	90	17250	450	1450	16024**	215	120	180	140	0.6	11.5	24	4	4	27.2
	100	19625	350	1250	16028**	260	140	210	150	2.6	14.5	28	4	4	44.5
	130	34750	250	1000	16032**	300	160	240	180	2	17.5	32	5	5	68.0

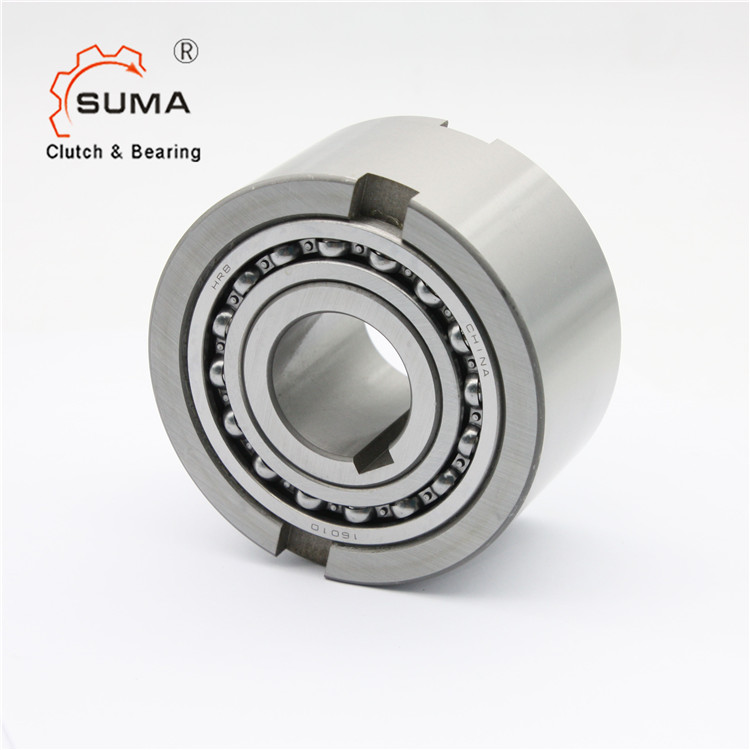

Photo of NFR One Way Clutch Bearing

Testing Equipment of NFR Sprag One Way Bearings

FAQ of NFR Overrunning Clutch One Way Bearing

1. Are you Trading Company or Manufacturer ?

SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years.

2. What is the NFR series one-way clutch used for?

The NFR clutch is designed for overrunning, backstopping, and indexing applications in machinery such as conveyors, packaging systems, automated equipment, and industrial drive systems.

3. What Material of the NFR one way bearings you are supplied ?

Standard Material : GCr15 Bearing Steel

4. How soon you can make the shipment ?

Usually all are in stock, can ship out within 2-3 days .

If big quantity, can ship out in 10 days .

Customized sizes may need 15-20 days , Depends on specific order.

5. Is there guarantee of items purchased ?

We produce 1 year warranty for all backstop clutch we sell.

6. How does the NFR one-way clutch work?

The NFR clutch allows torque transmission in one direction while freewheeling in the opposite direction, providing reliable motion control and preventing reverse rotation.
