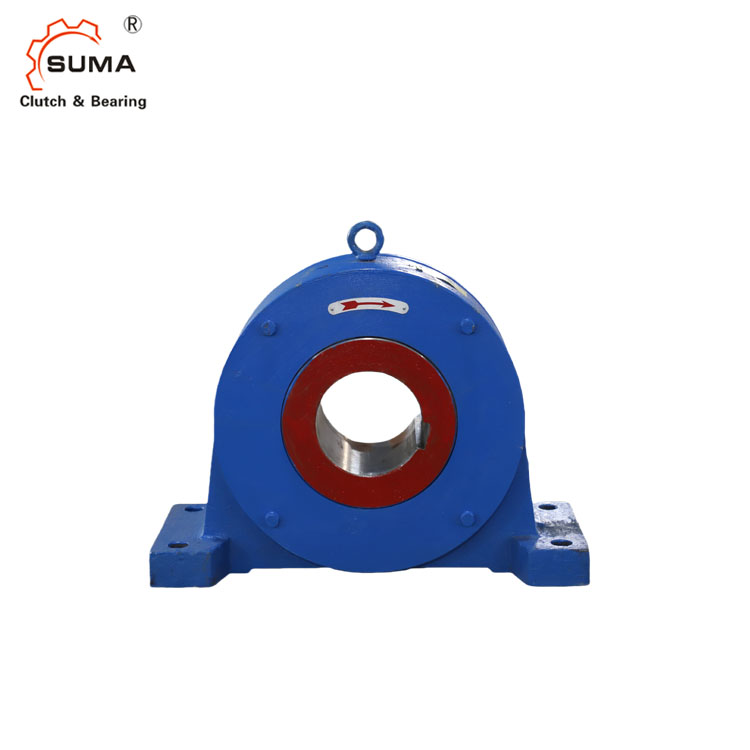

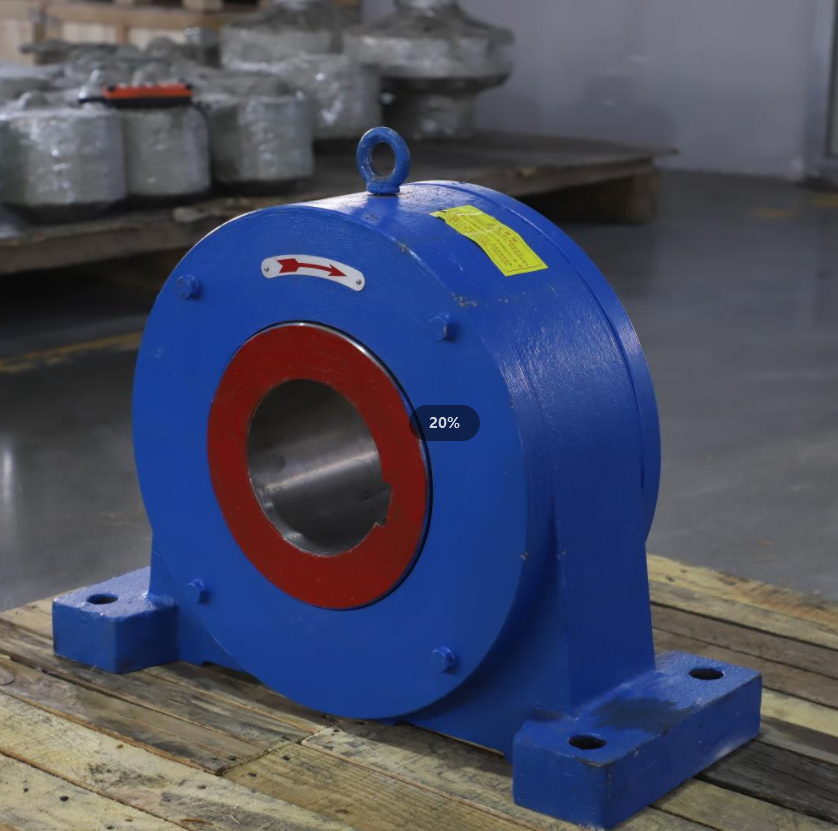

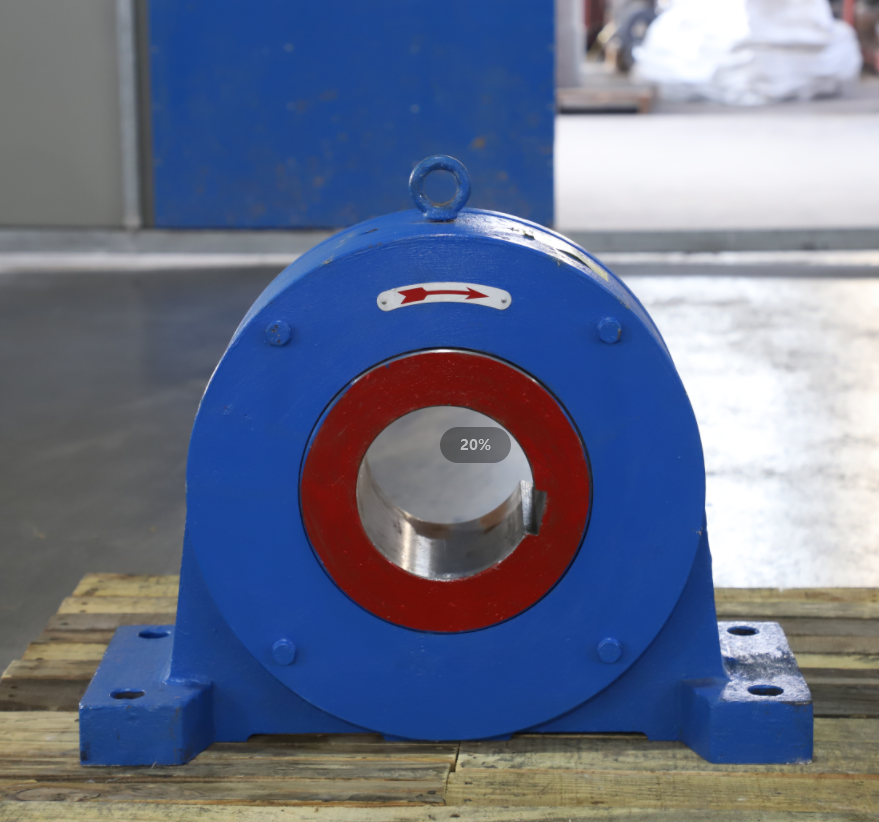

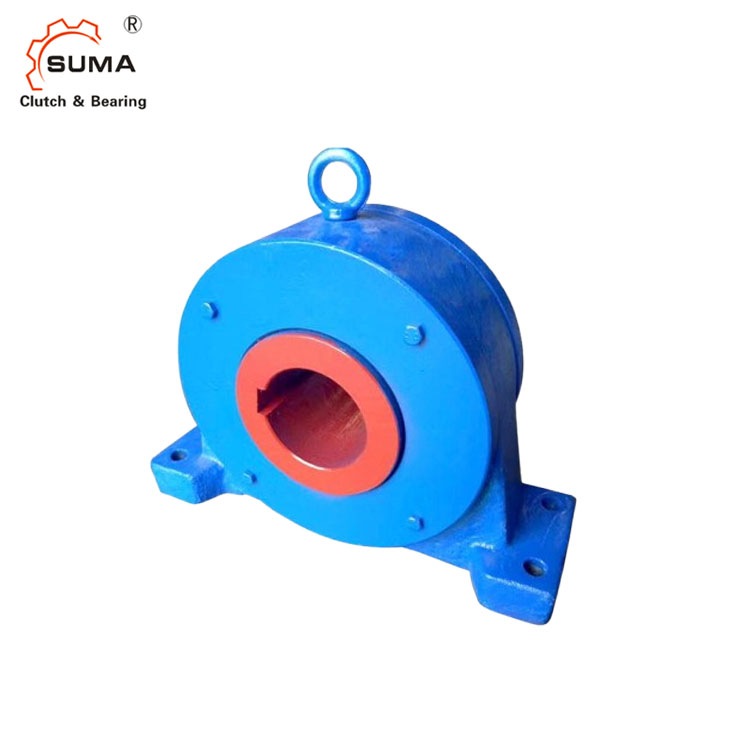

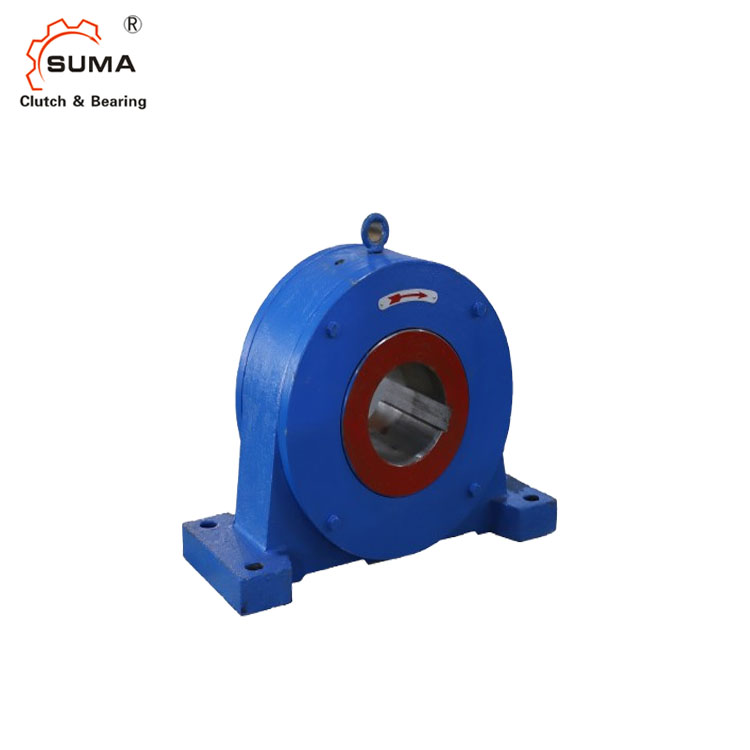

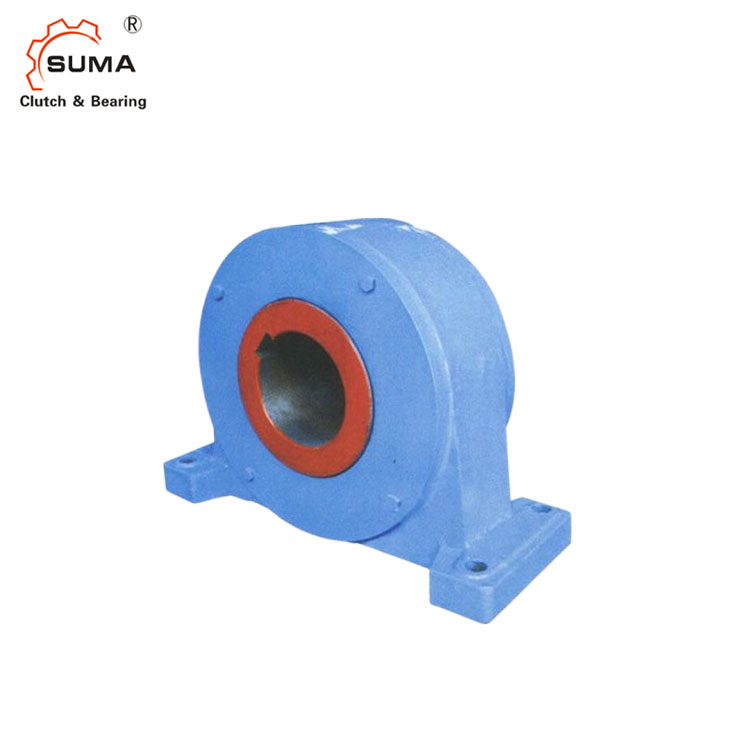

GN, DTIIN1 backstop clutch is a kind of low speed of roller type plugging device, often with reducer, used in belt conveyor, hoist, electric drum, and other need a non-return device.
Non-return quickly, small reverse distance, long life, can withstand the torque.
Roller freewheels Backstop Clutch feature roller ramps on either the inner or outer ring, while the opposite ring is equipped with a cylindrical track. Positioned between the rings, the individually spring-loaded rollers enable the freewheel to securely lock without any slipping .
In the configuration depicted , the outer ring can rotate freely in a clockwise direction during freewheeling operation under the following conditions:
The inner ring is stationary,
The inner ring is turning counterclockwise, or
The inner ring is turning clockwise at a slower rate than the outer ring.
If the outer ring, with a stationary inner ring, is turned in the opposite direction, the clamping mechanism engages. The rollers clamp securely between the tracks without slipping, allowing for the transmission of high torque in this direction of rotation during driving operation.
This setup also facilitates freewheeling operation when the inner ring is turning counterclockwise and driving operation when turning clockwise, providing versatile functionality.
The fundamental working principle of a one-way backstop clutch involves several key components:
Inner Race: The inner race is a cylindrical or annular component that is securely attached to a shaft or rotating element.
Outer Race: The outer race is another cylindrical or annular component that remains stationary or is attached to a stationary part of the machine.
Roller or Sprag: Between the inner and outer races are a series of roller or sprags. These elements are critical to the clutch's operation.
型号 Type | 承载 扭矩Torque | 最大孔径Bore Dia. φdH7 | 外形尺寸 DIMENSION | 重量Weight | 推荐适配减速机型号 Recommended | ||||||||
bx t | C | L | B | C1 | B1 | H | H1 | D1 | kg | ||||
GN 110 | 6770 | 110 | 32X6.7 | 400 | 450 | 140 | 90 | 140 | 160 | 310 | φ21 | 89.4 | ZQ650 |
GN 130 | 13700 | 130 | 36X7.4 | 430 | 480 | 170 | 120 | 180 | 175 | 340 | 120 | ZQ850 | |
GN 140 | 13700 | 140 | 36X7.4 | 430 | 480 | 170 | 120 | 190 | 175 | 340 | 105 | ZQ85 | |
GN 150 | 22800 | 150 | 40X8.7 | 510 | 580 | 190 | 170 | 230 | 215 | 420 | φ26 | 186 | ZQ1000 |
GN 170 | 22800 | 170 | 40X8.7 | 510 | 580 | 190 | 170 | 250 | 215 | 420 | 182 | ZL100 | |
GN 200 | 47600 | 200 | 45X9.9 | 590 | 660 | 220 | 210 | 290 | 275 | 540 | φ32 | 352 | ZL115 |
GN 220 | 47600 | 220 | 50X11.2 | 590 | 660 | 220 | 210 | 290 | 275 | 540 | 339 | ZL130 | |
GN backstop clutches are used in conveyor systems to prevent backward motion when the conveyor needs to stop suddenly. This enhances safety and prevents product damage. It is widely used on conveyor system of Grain Silo Equipment.
Backstop clutches are employed in the freewheel mechanism. Backstop to Prevent Reversal of Inclined Conveyor and Vertical Bucket Elevators .
With the drive at one end of the drive pulley shaft, the backstop should be located at the opposite end, away from the speed reducer and coupling.
Various industrial equipment, such as packaging machines, printing presses, and textile machinery, use one-way backstop clutches to prevent reverse rotation and safeguard against unintended backdriving.
Lubrication
◆ #2 Lithium-Based Grease is widely used for the cam clutch lubrication. Please contact Suma engineer if special grease are needed .
◆ Grease with Plumbum or Graphit are strictly forbidden.
◆ Lubrication grease was added before clutch leave factory, user can install the clutch directly. If clutch leave factory over 1 year or the grease has gone bad , need to clean clutch first then add specified amount grease to the clutch .
◆ Change grease every 3-6 months based on user’s operating frequency. Add grease to clutch every one month .
Proper operation and maintenance are crucial for ensuring the longevity and performance of one-way backstop clutches. Here are some operating instructions:
Periodically inspect the clutch for signs of wear, damage, or contamination.
Follow the manufacturer's recommended maintenance schedule to replace or repair worn or damaged components.
Avoid subjecting the clutch to torque loads beyond its specified capacity, as this can lead to damage or failure.
Ensure that the clutch is appropriately sized for the intended application to prevent overloading.
GN Backstop clutch is king of low-speed plugging device, its structure is compact, light weight, reliable wedge, easy installation, installation accuracy is not high, can be directly installed on the main machine drum shaft, can also be directly installed on the reducer, it is a kind of safety protection device to promote the transport equipment.
1. Are you Trading Company or Manufacturer ?
SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years .
2. Can i have Samples to check quality first ?
It is okay to get backstop clutch sample for quality check .
3. How can i choose the correct backstop clutch i need ?
Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.
If you not so sure about it, pls share with us, our engineer will give you professional guidance .
4. What Material of the bearings you are supplied ?
Standard Material : GCr15 Bearing Steel
5. How soon you can make the shipment ?
Usually 15 days
If big quantity, can ship out in 25 days .
Customized sizes may need 30-40 days , Depends on specific order.
6. Is there guarantee of items purchased ?
We produce 1 year warranty for all backstop clutch we sell.
