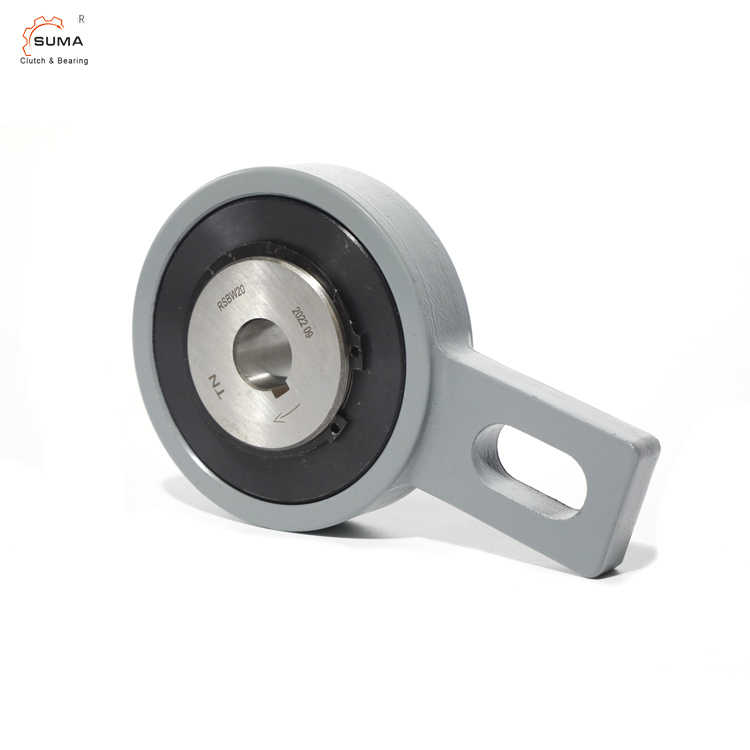

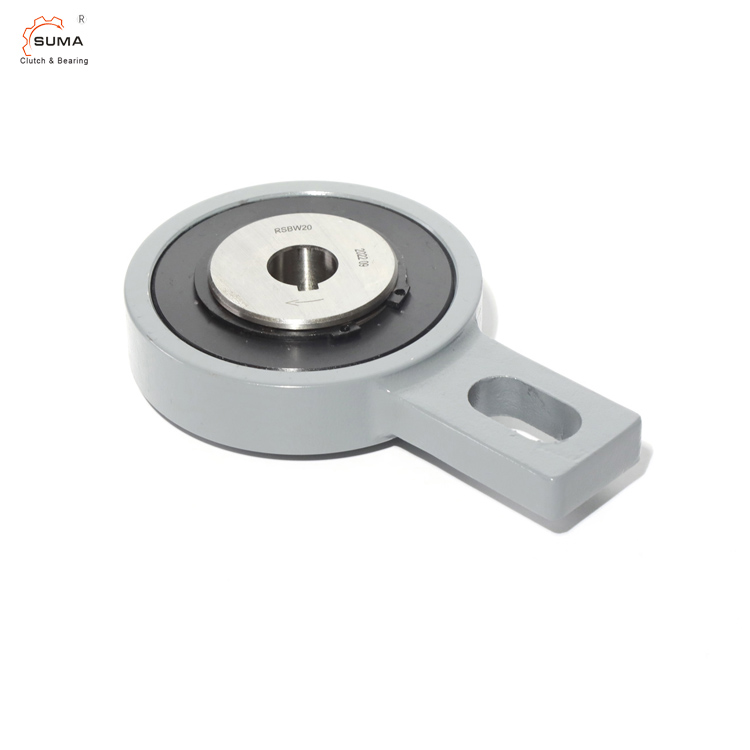

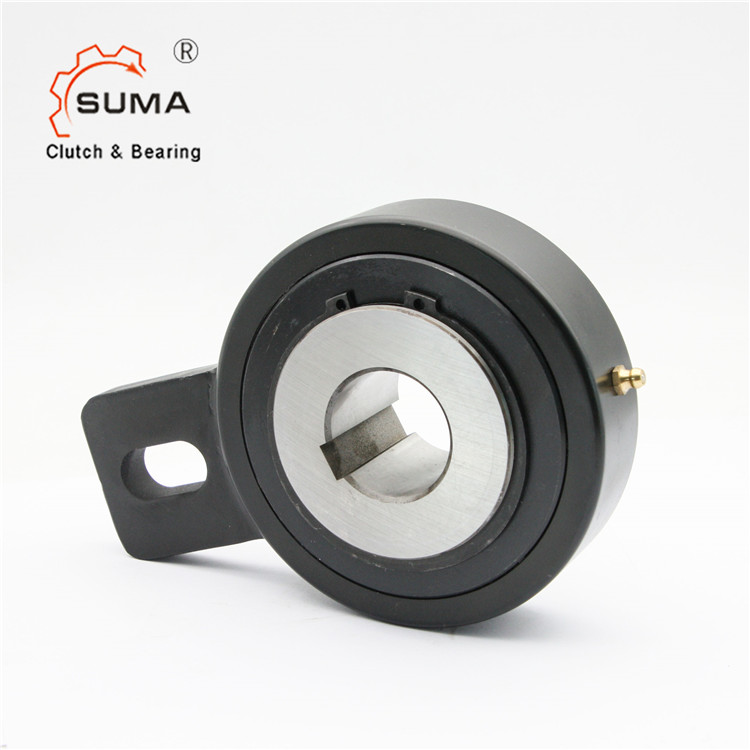

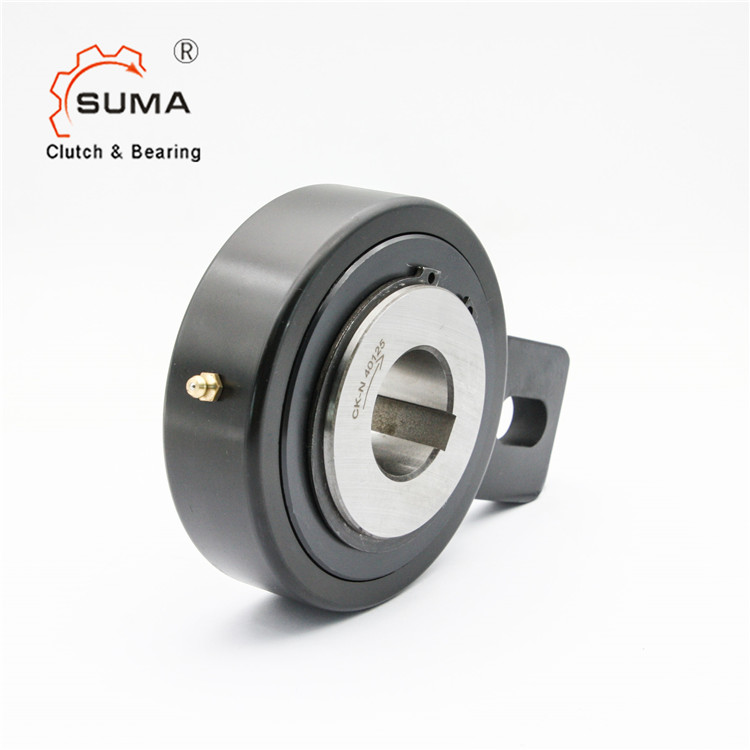

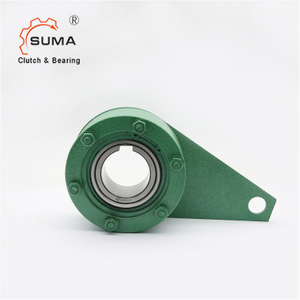

One-Way Backstop Clutch Bearing RSBW 60

Working Principle of a One-Way Backstop Clutch

Type RSBW is a DC sprag type freewheel. It is selfcontained, centered by plain bearings for low rotational speeds

 and sealed using shield protected O Rings. Unit is delivered grease lubricated ready for installation in either a

 horizontal or vertical position.

Primarily used as a backstop, this type provides a high torque capacity with a minimum space requirement.

A one-way backstop clutch, which is sometimes referred to as a one-way bearing or overunning clutch, is a

 mechanical device that plays a critical role in various applications. Its primary purpose is to enable rotational

 motion in a single direction while simultaneously preventing any motion in the opposite direction. This concept is

 extremely important in numerous industries and situations where it is absolutely essential to ensure the

 transmission of power in only one direction. By utilizing a one-way backstop clutch, engineers and designers can

 effectively achieve unidirectional power transmission, providing enhanced efficiency and reliability in their

 systems.

Key Components

The fundamental working principle of a one-way backstop clutch involves several key components:

1. Inner Race: The inner race is a cylindrical or annular component that is securely attached to a shaft or rotating element.




2. Outer Race: The outer race is another cylindrical or annular component that remains stationary or is attached to a stationary part of the machine.




3. Roller or Sprag: Between the inner and outer races are a series of roller or sprags. These elements are critical to the clutch's operation.

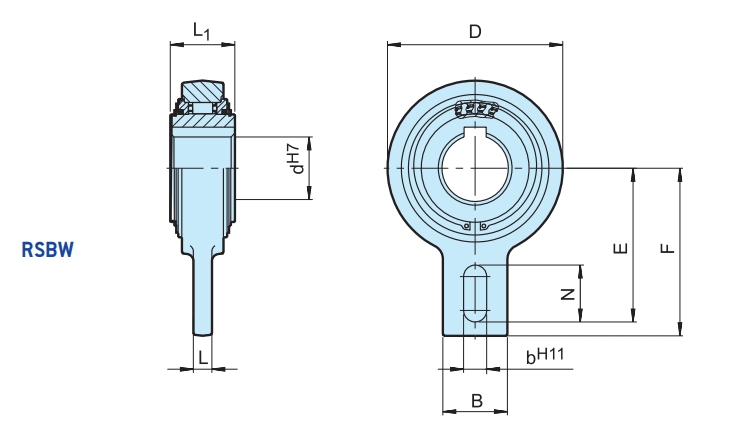

Technical Parameter of Backstop Clutch

RSBW BACKSTOP CLUTCH.pdf

Type	Size		Overrunning Speeds									Weight
RSBW	dH7	TKN1)	nimax	D	L 1	F	E	B	N	L	bH11
	[mm]	[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	375	400	106	35	113	102.5	40	35	15	18	2
	25	606	400	106	48	113	102.5	40	35	15	18	2.6
	30	606	400	106	48	113	102.5	40	35	15	18	2.5
	35M	375	400	106	35	113	102.5	40	35	15	18	2
	35	606	400	106	48	113	102.5	40	35	15	18	2.4
	40	1295	300	132	52	125	115	60	35	15	18	4.6
	45	1295	300	132	52	125	115	60	35	15	18	4.5
	50	1295	300	132	52	125	115	60	35	15	18	4.5
	55	1295	300	132	52	125	115	60	35	15	18	4.4
	60	2550	250	161	54	140	130	70	35	15	18	6.5
	70	2550	250	161	54	140	130	70	35	15	18	6.4
	80	4875	200	190	70	165	150	70	45	20	25	9.9
	90	4875	200	190	70	165	150	70	45	20	25	9.8

Overrunning Capability

The primary function of a one-way backstop clutch is to allow overrunning in one direction while preventing it in

 the other. This behavior is achieved through the design of the roller or needle bearings:

1. Overrunning Direction: In the direction in which the clutch is intended to transmit power, the roller or

   needle bearings can roll freely between the inner and outer races. This allows the inner and outer races to rotate together with minimal friction.




2. Locking Direction: In the opposite direction, the roller or needle bearings become wedged or locked between the inner and outer races when subjected to torque. This prevents the inner race from rotating faster than the outer race, effectively blocking any reverse motion.




Applications of One-Way Backstop Clutches

One-way backstop clutches are versatile devices used in a wide range of applications where unidirectional power transmission is essential. Here are some common applications:

Conveyor Systems

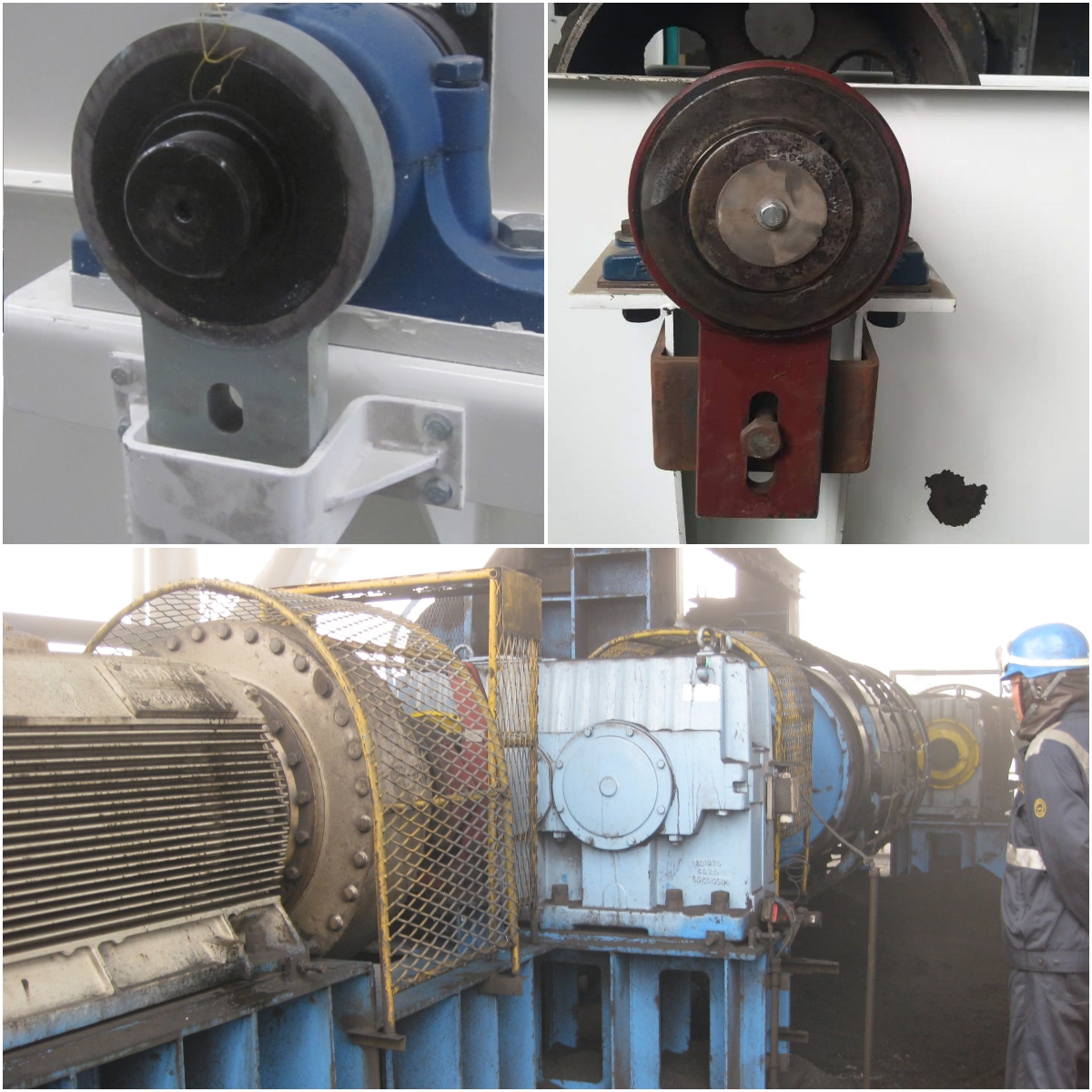

One-way backstop clutches are used in conveyor systems to prevent backward motion when the conveyor needs to stop suddenly. This enhances safety and prevents product damage. It is widely used on conveyor system of Grain Silo Equipment.

Bucket Elevator

One-way backstop clutches are employed in the freewheel mechanism. Backstop to Prevent Reversal of Inclined Conveyor and Vertical Bucket Elevators .

With the drive at one end of the drive pulley shaft, the backstop should be located at the opposite end, away from the speed reducer and coupling.

Industrial Equipment

Various industrial equipment, such as packaging machines, printing presses, and textile machinery, use one-way backstop clutches to prevent reverse rotation and safeguard against unintended backdriving.

Operating Instructions for One-Way Backstop Clutches

Proper operation and maintenance are crucial for ensuring the longevity and performance of one-way backstop clutches. Here are some operating instructions:

Installation

1. Ensure that the clutch is installed in the correct direction, allowing free rotation in the intended direction of power transmission.




2. Verify that the inner and outer races are properly aligned with the respective machine components.




3. Apply the recommended torque to secure the clutch in place, following the manufacturer's guidelines.

    The Torque Arm cannot be tightly fixed, must leave 3-5mm space to make it function well




Lubrication

1. Use the recommended lubrication specified by the manufacturer. Insufficient or improper lubrication can lead to premature wear and failure.




2. Regularly check and maintain the lubrication to ensure that the clutch operates smoothly.




Inspection and Maintenance

1. Periodically inspect the clutch for signs of wear, damage, or contamination.




2. Follow the manufacturer's recommended maintenance schedule to replace or repair worn or damaged components.




Overloading

1. Avoid subjecting the clutch to torque loads beyond its specified capacity, as this can lead to damage or failure.




2. Ensure that the clutch is appropriately sized for the intended application to prevent overloading.




Conclusion

One-way backstop clutches are essential components in various mechanical systems where unidirectional power transmission is critical. They operate on the principle of allowing motion in one direction while preventing it in the other, making them invaluable in applications like conveyors, bicycles, ratchet mechanisms, and industrial equipment. Popular models from manufacturers offer different features to suit diverse needs. To ensure the optimal performance and longevity of these clutches, proper installation, lubrication, inspection, and maintenance are essential. By following operating instructions and best practices, users can maximize the reliability and efficiency of their one-way backstop clutches.

FAQ

1. Are you Trading Company or Manufacturer of Backstop Clutch Bearing  ?

SUMA is Manufacturer with one-stop service , Production history over 20 years, exporting experience up to 10 years  .

2. Can i have Backstop Clutch Bearing Samples to check quality first ?

It is okay to get backstop clutch sample for quality check .

3. How can i choose the correct backstop clutch i need ?

Torque capacity , Rotation Speed , and Dimensions are necessary to choose the right model.

If you not so sure about it, pls share with us, our engineer will give you professional guidance .

4. What Material of the Backstop Clutch bearings you are supplied ?

Outer Race  / Inner Race : 20Cr, Needle Roller: GCr15 ,

5. How soon you can make the shipment of backstop clutch ?

Usually all are in stock, can ship out within 5-7 days .

If big quantity, can ship out in 10-15 days .

Customized sizes may need 15-20 days , Depends on specific order.

6. Is there guarantee of items purchased ?

We produce 1 year warranty for all backstop clutch we sell.
