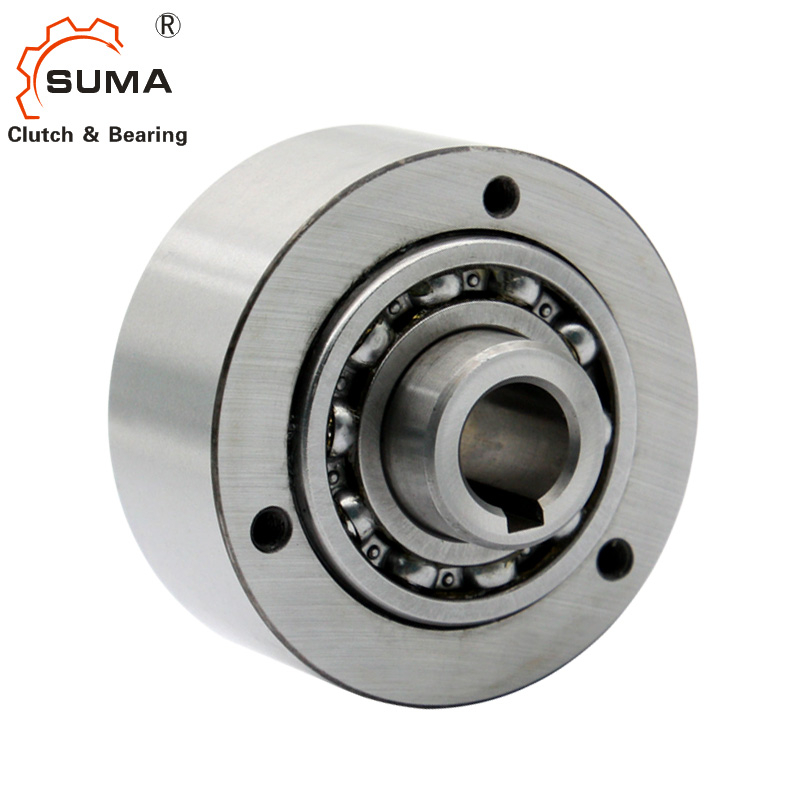

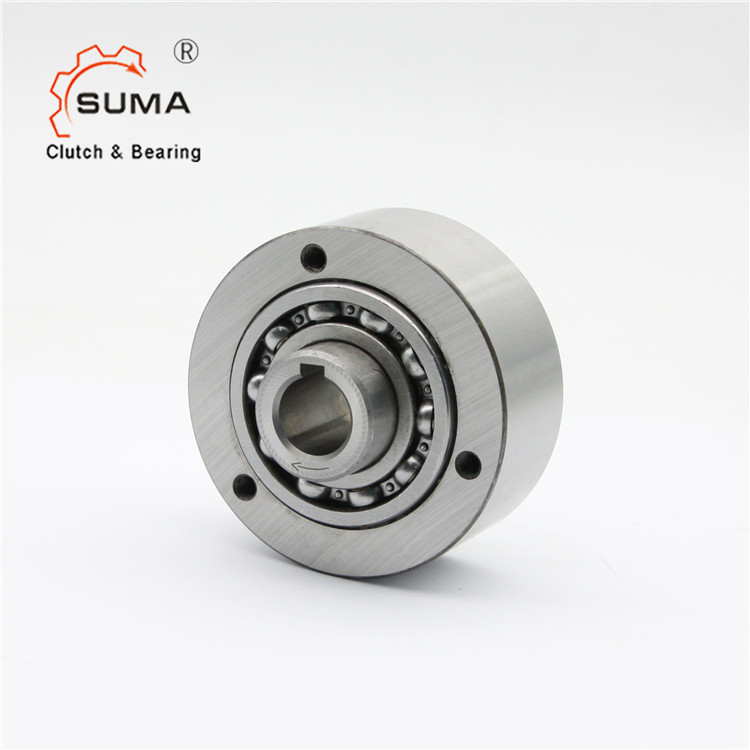

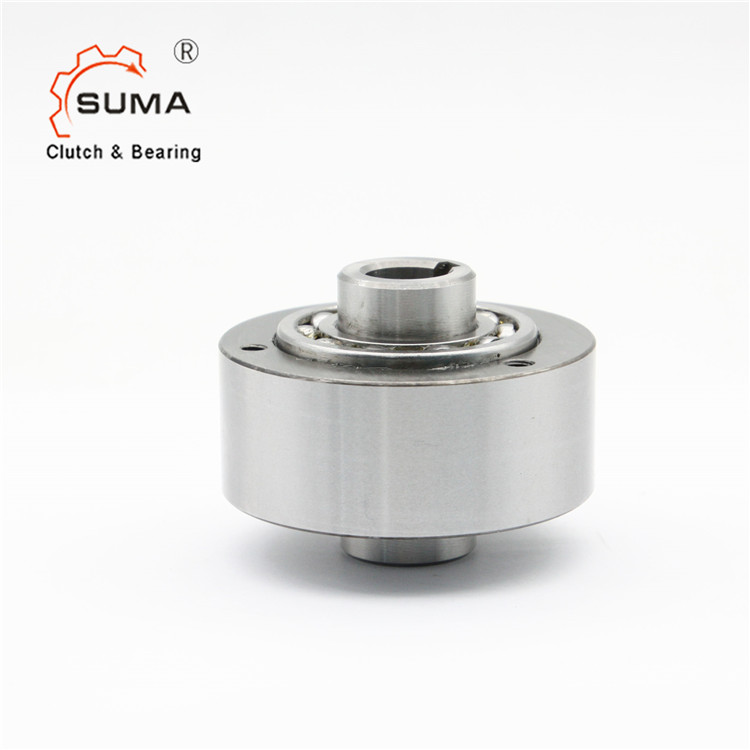

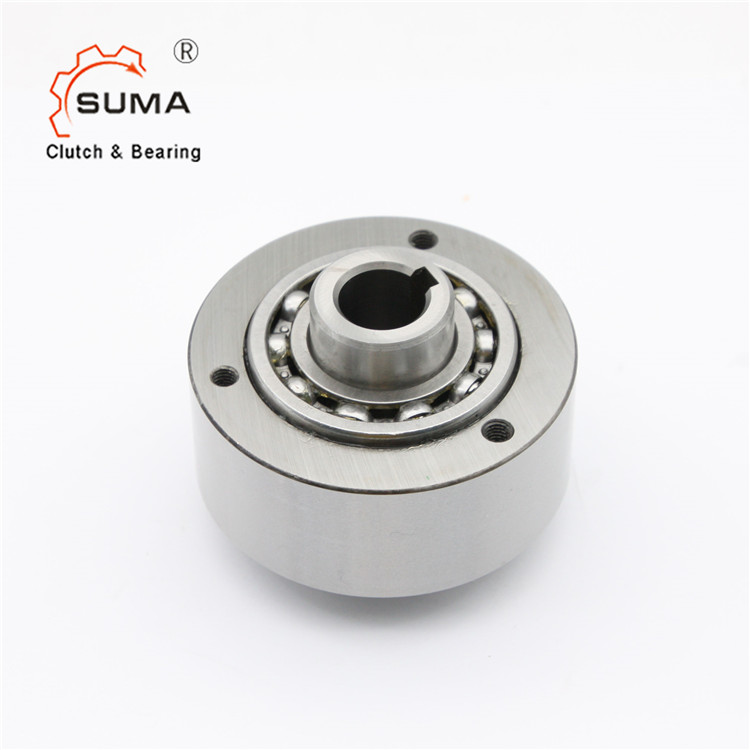

GFR Series One Way Backstop Freewheels Roller Clutch Bearing GFR 60

Model:
GFR 60
Brand:
SUMA

ID:	60MM
OD:	170MM
Thickness:	78MM
Torque Capacity:	3500Nm
Weight :	10.5KG
Material:	GCr15
Availability:



Inquiry Add to Basket

Product Description

GFR Series One Way Backstop Freewheels Roller Clutch Bearing GFR 60

Features of GFR Series Freewheel Backstop Clutch Bearings

The GFR and GFRN types are roller-type freewheels that are supported by two 160.. series bearings and require

oil lubrication. These units are intended for applications where oil lubrication and sealing are provided, as shown

in the example on the following page. It is important to ensure that the bearings are not subjected to axial stress.

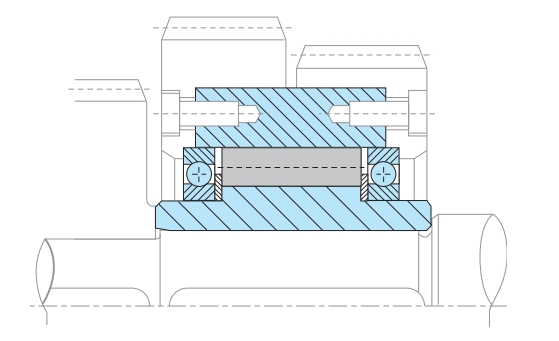

Typically, the GFR and GFRN types are used with F-series covers, which are designed to transmit torque and provide

both oil lubrication and sealing. The GFR model has a smooth outer race, allowing for alignment with any

component machined to an H7 tolerance. In this setup, torque transmission is achieved by bolts passing through

the cover plate. The GFR and GFRN models are identical, except the GFRN model includes an external keyway for

torque transmission. Each unit is supplied with two paper seals, which should be placed between the outer race

and cover plates.

Introduction of GFR One Way Bearing Freewheel Backstop Clutch

GFR GFRN One Way Bearings.pdf

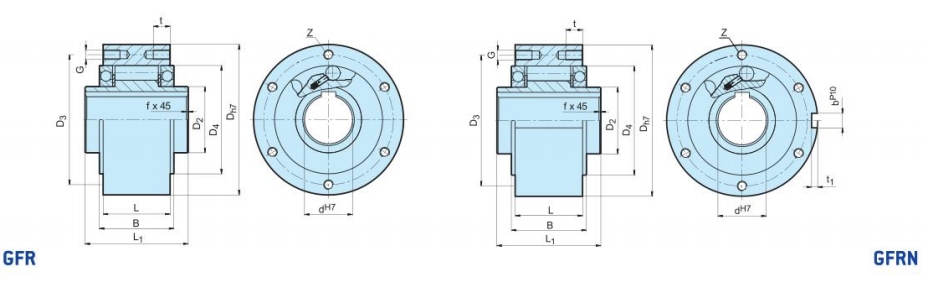

Type	Size		Overrunning speeds							Num ber				Weight
GFR GFRN	d^H7	T_KN¹⁾	n_imax²⁾	n_amax³⁾	D_h7	D₂	D₄	D₃	G	z	L₁	L	B
	[mm]	[Nm]	[min¹]	[min¹]	[mm]	[mm]	[mm]	[mm]			[mm]	[mm]	[mm]	[kg]
	12*	55	4000	7200	62	20	42	51	ø5.5	3	42	20	27	0.5
	15	125	3600	6500	68	25	47	56	M5	3	52	28	32	0.8
	20	181	2700	5600	75	30	55	64	M5	4	57	34	39	1
	25	288	2100	4500	90	40	68	78	M6	4	60	35	40	1.5
	30	500	1700	4100	100	45	75	87	M6	6	68	43	48	2.2
	35	725	1550	3800	110	50	80	96	M6	6	74	45	51	3
	40	1025	1150	3400	125	55	90	108	M8	6	86	53	59	4.6
	45	1125	1000	3200	130	60	95	112	M8	8	86	53	59	4.7
	50	2125	800	2800	150	70	110	132	M8	8	94	64	72	7.2
	55	2625	750	2650	160	75	115	138	M10	8	104	66	72	8.6
	60	3500	650	2450	170	80	125	150	M10	10	114	78	89	10.5
	70	5750	550	2150	190	90	140	165	M10	10	134	95	108	13.5
	80	8500	500	1900	210	105	160	185	M10	10	144	100	108	18.2
	90	14500	450	1700	230	120	180	206	M12	10	158	115	125	28.5
	100	20000	350	1450	270	140	210	240	M16	10	182	120	131	42.5
	130	31250	250	1250	310	160	240	278	M16	12	212	152	168	65
	150	70000	200	980	400	200	310	360	M20	12	246	180	194	138

Installation of GFR Freewheel Clutch One Way Bearings

Installing the GFR Freewheel One Way Clutch correctly is imperative for optimal performance and longevity. The

installation process involves several key steps, each requiring careful attention to detail.

Installation and Usage

MZ Installation

Secure Fastening

Ensuring secure fastening of the GFR Freewheel Clutch to the shaft or mounting surface is vital. Incorrect or loose fastening can lead to misalignment, reducing the clutch's effectiveness and potentially causing damage to both the clutch and the machinery.

Utilize solely a parallel key for securing the clutch to the shaft, avoiding the use of a tapered key.

When installing the clutch onto the shaft, exert pressure on the inner race exclusively, avoiding any pressure on the outer race. Refer to the illustration on the right for guidance.
